Overview - Starter

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

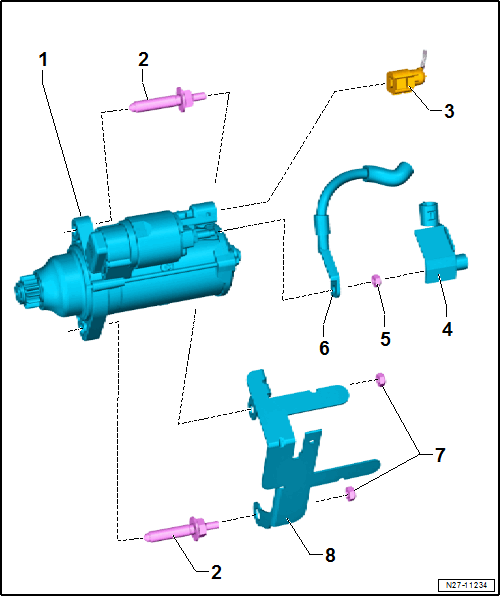

Fig 1: Exploded View Of Starter
GWWN27-11234Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Starter -B-
  2. Double Bolt
    • Quantity: 2
    • 80 Nm
  3. Connector
  4. Cap
  5. Nut
    • 20 Nm
  6. 30/B+ Terminal
  7. Nut
    • Quantity: 2
    • 20 Nm
  8. Bracket
    • for wiring harness
