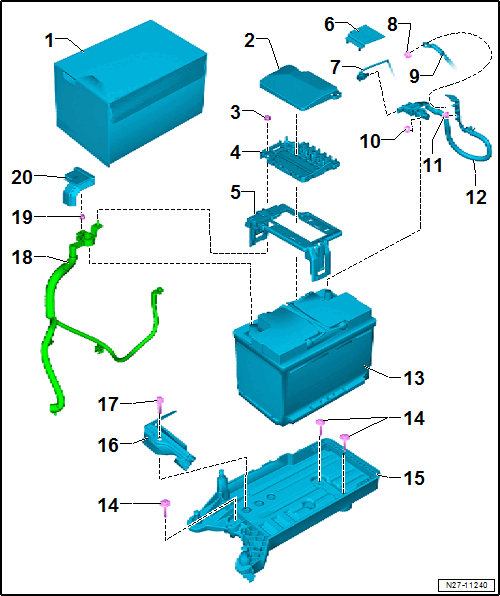

Overview - Battery, Vehicles With Main Fuse Panel
WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.
- Heat Shield Boot
- Cap
- Clipped in with the main fuse panel
- Nut
- Tightening specification MAIN FUSE PANEL ON BATTERY .
- Main Fuse Panel
- Overview. Refer to MAIN FUSE PANEL ON BATTERY .
- Removing and installing. Refer to MAIN FUSE PANEL, REMOVING AND INSTALLING .
- Bracket
- Clipped on the Battery -A-
- Cover
- For negative terminal
- Connector
- For the Battery Monitoring Control Module -J367-
- Follow the sequence when connecting the ground cable. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- Nut
- 9 Nm
- Ground Wire
- Nut
- 6 Nm
- Nut
- 20 Nm
- Ground Wire
- With battery terminal clamp and Battery Monitoring Control Module -J367-
- Battery Monitoring Control Module -J367-, Adapting. Refer to Battery Monitoring Control Module -J367-, ADAPTING .
- Disconnecting and Connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- Removing and installing. Refer to GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING .
- Battery
- Removing and installing. Refer to BATTERY, REMOVING AND INSTALLING, VEHICLES WITH MAIN FUSE PANEL .
- Disconnecting and Connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- Replacing on vehicles with Start/Stop System. Refer to Vehicles with Start/Stop System .
- Bolts
- Quantity: 3
- 9 Nm
- Battery Tray
- Removing and installing. Refer to BATTERY TRAY, REMOVING AND INSTALLING .
- Bracket
- Bolt
- 20 Nm
- Positive Cable
- With battery terminal clamp
- Disconnecting and Connecting. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- Nut
- 6 Nm
- Cover
- For positive terminal
