GROUND CABLE WITH Battery Monitoring Control Module -J367-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Connecting Battery

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the Battery -A-. Refer to BATTERY, REMOVING AND INSTALLING .

-- Disconnect the connector -2- from the Battery Monitoring Control Module -J367- -3-.

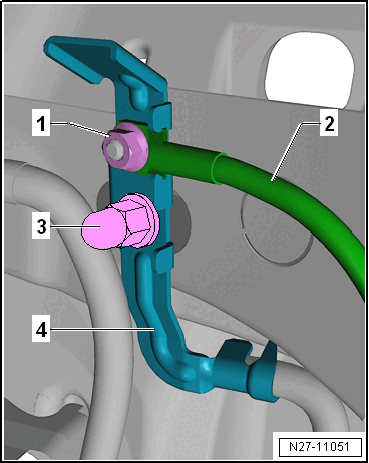

-- Remove the nut -1- for the ground cable -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nut -3-.

-- Remove the ground cable with the Battery Monitoring Control Module -J367- -4-.
