Oil Supply Line, Removing And Installing

-- Remove the catalytic converter and move to the side. Refer to Catalytic Converter, Removing and Installing .

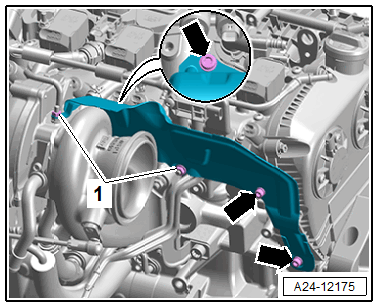

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -1-.

-- Remove the heat shield.

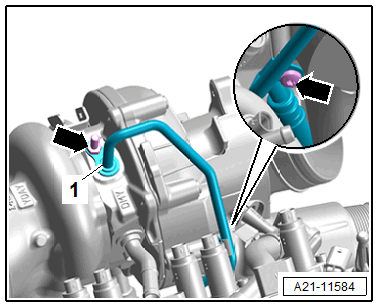

-- Remove the bolts -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Place a cleaning cloth underneath, to catch oil leaking out.

-- Remove the oil supply line -1-.

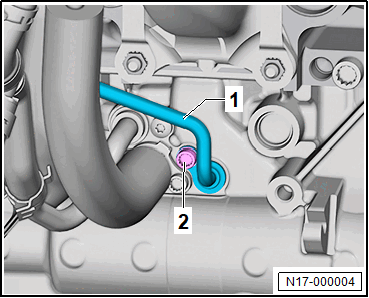

-- Remove the bolt -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the oil supply line -1- and guide out.

Installing

Install in the reverse order of removal while noting the following:

-- Refer to ENGINE OIL LEVEL, CHECKING .

Tightening Specifications

• Refer to Overview - Turbocharger .
