Installation Opening Cover, Removing And Installing, PASSAT And ARTEON

Special tools and workshop equipment required

• Trim Removal Wedge:3409
  Fig 1: Identifying Trim Removal Wedge

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the rear bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

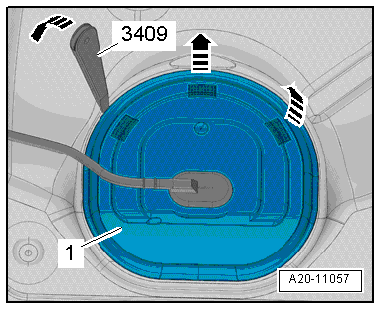

-- Unclip the sealing flange cover -1- at the tabs -arrows- using the Trim Removal Wedge:3409  .

Fig 2: Fuel Pump Cover (Under Rear/Bench Seat)

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

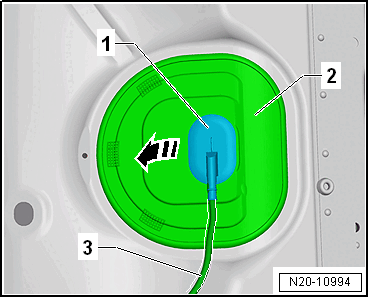

-- Unclip the grommet -1- downward out of the cover -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Guide the cover -2- on the wiring harness -3- toward the rear.
