Overview - Exhaust Temperature Regulation

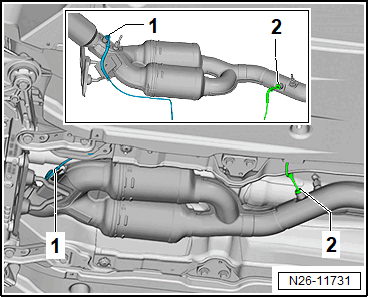

Fig 1: Locating Exhaust Temperature Regulation

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Exhaust Gas Temperature Sensor 3 -G495-
- 45 Nm
- Cannot be replaced separately
- Included in the Particulate Filter Differential Temperature Sensor -GX41-
- Refer to Exhaust Gas Temperature Sensor, Removing and Installing .
Exhaust Gas Temperature Sensor 4 -G648-
- 45 Nm
- Cannot be replaced separately
- Included in the Particulate Filter Differential Temperature Sensor -GX41-
- Refer to Exhaust Gas Temperature Sensor, Removing and Installing .
