Overview - Radiator

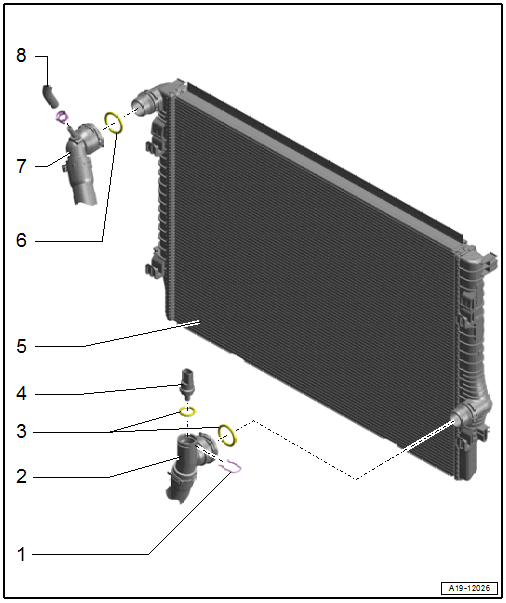

Fig 1: Exploded View Of Radiator
GWWA19-12026Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Clip
  2. Coolant Hose
  3. O-Ring
  4. Engine Coolant Temperature Sensor on Radiator Outlet -G83-
  5. Radiator
  6. O-Ring
  7. Coolant Hose
  8. Coolant Hose
