Overview - Engine/Motor Coolant Temperature Sensor

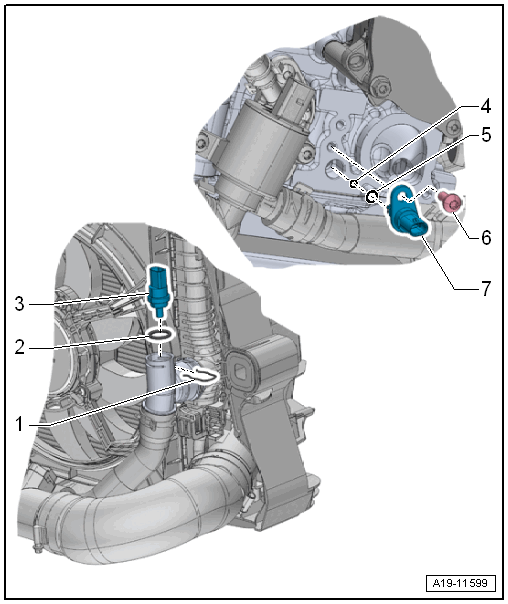

Fig 1: Engine Coolant Temperature Sensor Components Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Clip
2. O-Ring
   • Replace after removing
3. Engine Coolant Temperature Sensor on Radiator Outlet -G83-
   • Refer to ENGINE COOLANT TEMPERATURE SENSOR ON RADIATOR OUTLET G83, REMOVING AND INSTALLING  .
4. O-Ring
   • Replace after removing
5. O-Ring
   • Replace after removing
6. Bolt
   • 4 Nm +45°
   • Replace after removing
7. Engine Coolant Temperature Sensor -G62-
   • Refer to ENGINE COOLANT TEMPERATURE SENSOR G62, REMOVING AND INSTALLING  .
