Vehicles with Start/Stop System

NOTE:

Vehicles with the Start/Stop System have a special battery due to the increased load on the cycles.

When replacing the battery, note the correct replacement part identification.

Batteries for vehicles with the Start/Stop System have "AGM" (Absorbent Glass Mat) or "EFB" (Enhanced Flooded Battery) marked on them.

Continuation for All Vehicles

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

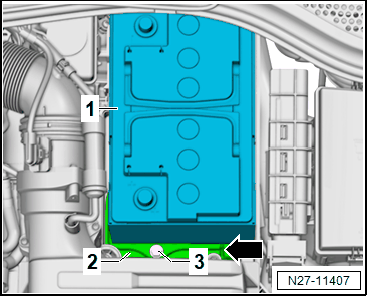

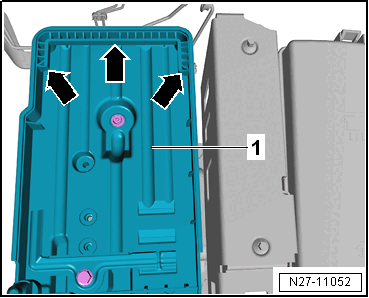

-- Insert the battery into the battery tray -1- so that the battery clamping strip touches the rear and side stops -arrows-.

The battery must be secured so it does not move toward the rear or to the sides.

-- Install the bracket -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The tab -arrow- at the securing bracket -2- must engage into the cut-out at the battery clamping strip.

-- Tighten the bolt -3-.

-- Check the battery -1- for secure fit.

When the Ignition and Electrical Equipment Are Switched off, Connect the Battery in the Following Sequence:

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

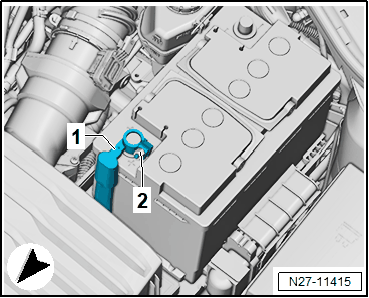

-- Install the battery positive cable terminal clamp -1- on the battery positive terminal "+".

-- Tighten the nut -2-

NOTE:

If the battery is replaced, the Battery Monitoring Control Module -J367- must be adapted. Refer to Battery Monitoring Control Module -J367-, ADAPTING .

Tightening Specifications
