Transmission Identification

The image shows only the example markings

Rear final drive allocation

Rear final drive -08E-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

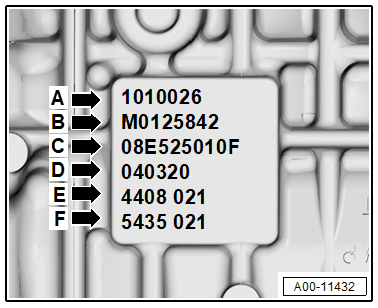

Example image

-arrow A- Serial number

-arrow B- Manufacturer Part Number

-arrow C- Customer number

-arrow D- Production date (Day-Month-Year)

-arrow E- Right side: classification 4408, Version 021

-arrow F- Left side: classification 5435, Version 021
