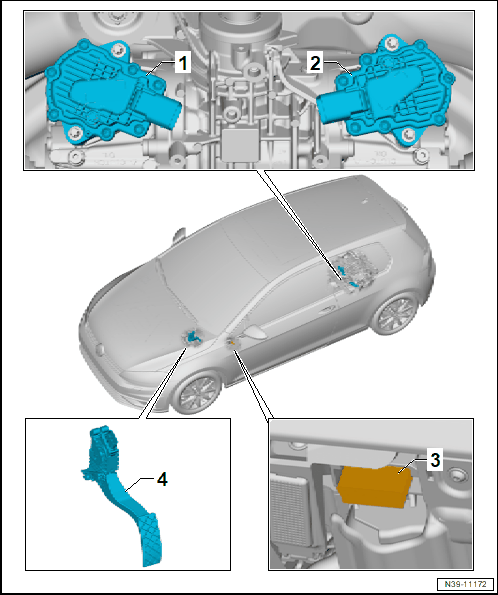

Component Location Overview - Electrical Components

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. -Adjusting Motor-
   • For right rear axle torque distribution
   • Removing and Installing. Refer to ALL-WHEEL DRIVE CONTROL MODULE WITH ADJUSTMENT MOTOR, REMOVING AND INSTALLING .
2. -Adjusting Motor-
   • For left rear axle torque distribution
   • Removing and Installing. Refer to ALL-WHEEL DRIVE CONTROL MODULE WITH ADJUSTMENT MOTOR, REMOVING AND INSTALLING .
3. Diagnostic Connection -U31-
   • Component location: inside the left front footwell
4. Accelerator Pedal Position Sensor -G79- and Accelerator Pedal Position Sensor 2 -G185-
   • Removing and installing. Refer to ACCELERATOR PEDAL MODULE -GX2-, REMOVING AND INSTALLING .
