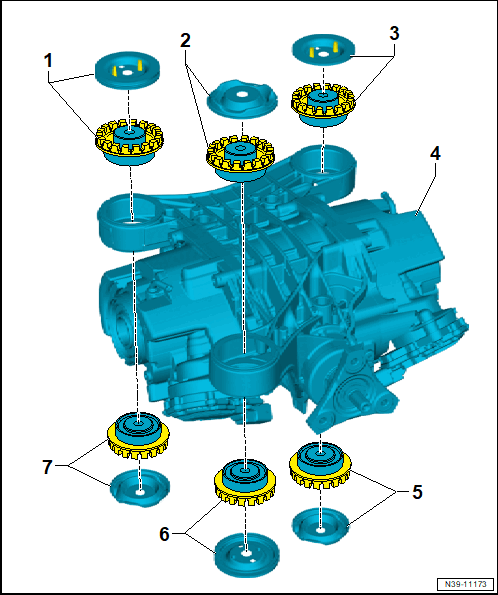

Overview - Assembly Mounts
- Bonded Rubber Bushing
- Right upper rear
- With stop washer
- Replace the bonded rubber bushings in pairs (upper and lower bushings).
- Allocation. Refer to the appropriate Electronic Parts Information.
- Remove the stop washer for removal and installation
- Removing and Installing. Refer to RUBBER BONDED BUSHING, REMOVING AND INSTALLING .
- Bonded Rubber Bushing
- Upper front
- With stop washer
- Replace the bonded rubber bushings in pairs (upper and lower bushings).
- Allocation. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to RUBBER BONDED BUSHING, REMOVING AND INSTALLING .
- Bonded Rubber Bushing
- Left upper rear
- With stop washer
- Replace the bonded rubber bushings in pairs (upper and lower bushings).
- Allocation. Refer to the appropriate Electronic Parts Information.
- Remove the stop washer for removal and installation
- Removing and Installing. Refer to RUBBER BONDED BUSHING, REMOVING AND INSTALLING .
- Rear Final Drive
- Remove to replace the bonded rubber bushing. Refer to FINAL DRIVE, REMOVING AND INSTALLING .
- Bonded Rubber Bushing
- Left lower rear
- With stop washer
- Replace the bonded rubber bushings in pairs (upper and lower bushings).
- Allocation. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to RUBBER BONDED BUSHING, REMOVING AND INSTALLING .
- Bonded Rubber Bushing
- Lower front
- With stop washer
- Replace the bonded rubber bushings in pairs (upper and lower bushings).
- Allocation. Refer to the appropriate Electronic Parts Information.
- Remove the stop washer for removal and installation
- Removing and Installing. Refer to RUBBER BONDED BUSHING, REMOVING AND INSTALLING .
- Bonded Rubber Bushing
- Right lower rear
- With stop washer
- Replace the bonded rubber bushings in pairs (upper and lower bushings).
- Allocation. Refer to the appropriate Electronic Parts Information.
- Removing and Installing. Refer to RUBBER BONDED BUSHING, REMOVING AND INSTALLING .
