All-Wheel Drive Control Module -J492-, REMOVING AND INSTALLING, GENERATION VI: Installing
-- Install in the reverse order of removal while noting the following:

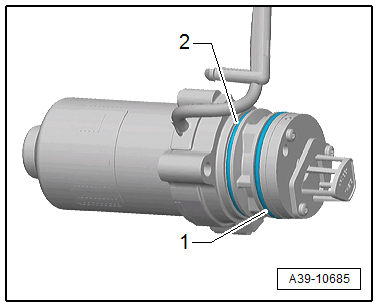

-- Coat the seals -1- and -2- lightly with oil for the all-wheel drive clutch and place it in the grooves of the All-Wheel Drive Control Module -J492-.
-- Insert the All-Wheel Drive Control Module -J492- in the all-wheel drive clutch housing and push in all the way.

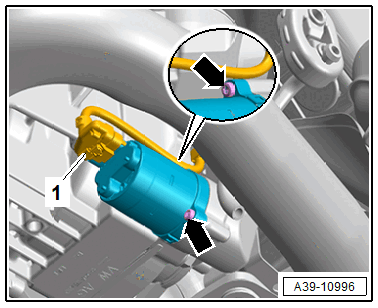

-- Tighten the bolts -arrows-.
-- Connect the connector -1-.
-- Fill the all-wheel drive clutch with oil and check the oil level. Refer to ALL-WHEEL DRIVE CLUTCH OIL, DRAINING AND FILLING .
- If a new All-Wheel Drive Control Module -J492- is installed, perform a basic setting.
-- Connect the Vehicle Diagnostic Tester, to the vehicle and start the Diagnosis .
- Select vehicle test
- Diagnostic-capable systems
- 0022 All-Wheel Drive Control Module J492
- 0022 All-Wheel Drive Control Module, Functions
- 0022 - Control module, replacing
-- Follow the instructions in the Vehicle Diagnostic Tester.
