Rear Brakes

Rear brakes FN c - M42:

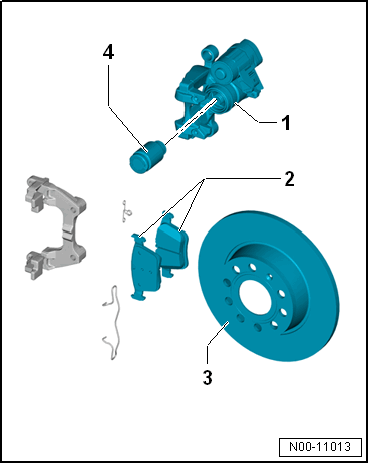

Fig 1: REAR BRAKES FNC-M38 (15"):

GWWN00-11013

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Item	PR Number		1KU / 2EA / 2EM	1KZ / 2 ER
1	Brake Caliper		FN c - M42 (16)	FN c - M42 (17)
2	Brake pad, thickness	mm	11 (0.43 in.)	11 (0.43 in.)
2	Brake pad, wear limit without backing plate	mm	2 (0.08 in.)	2 (0.08 in.)
3	Brake Rotor	diameter in mm	300 (11.81 in.)	310 (12.20 in.)
	Brake rotor, thickness	mm	12 (0.47 in.)	22 (0.87 in.)
	Brake rotor, wear limit	mm	10 (0.39 in.)	20 (0.79 in.)
4	Brake caliper, piston	diameter in mm	42 (1.65 in.)	42 (1.65 in.)
