Overview - Front Axle Speed Sensor

The overview shows the left side of the vehicle as an example

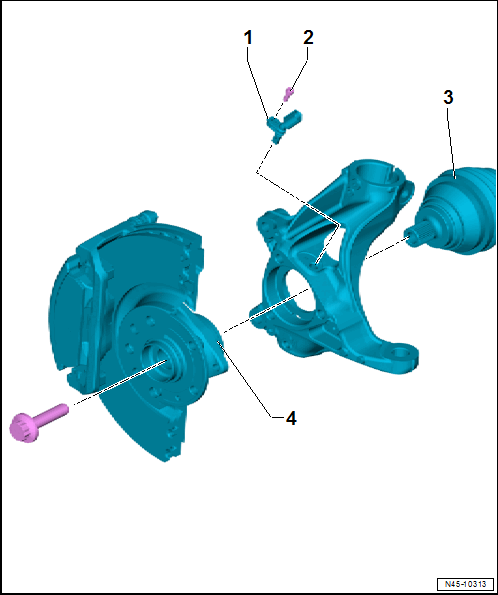

Fig 1: Exploded View Of Front Axle Speed Sensor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Left Front ABS Wheel Speed Sensor -G47- / Right Front ABS Wheel Speed Sensor -G45-
   • Removing and Installing. Refer to RIGHT AND LEFT FRONT ABS WHEEL SPEED SENSOR -G45- / -G47-, REMOVING AND INSTALLING .
2. Bolt
   • 8 Nm
3. Drive Axle
   • Overview. Refer to OVERVIEW - DRIVE AXLE .
   • Removing and Installing. Refer to DRIVE AXLE, REMOVING AND INSTALLING .
4. Wheel Hub with Wheel Bearing Unit
   • The ABS sensor ring is integrated in the wheel bearing unit
   • Removing and Installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING .
