Overview - Window Regulator

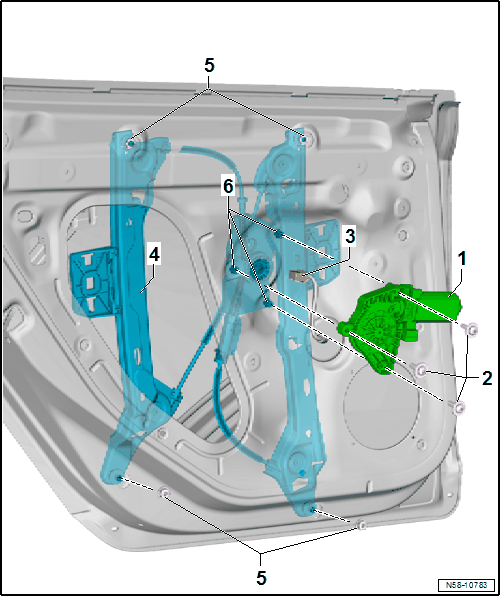

Fig 1: Exploded View Of Window Regulator

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Left and Right Window Regulator Motor -V14/V15-
- Removing and installing. Refer to WINDOW REGULATOR MOTOR, REMOVING AND INSTALLING .
Bolt
- Quantity: 3
- 3 Nm
Connector
Window Regulator
- Removing and installing. Refer to WINDOW REGULATOR, REMOVING AND INSTALLING .
Nut
- Quantity: 4
- 12 Nm
Hook for Cable Reel
- Quantity: 3
- Window Regulator Motor Mount
