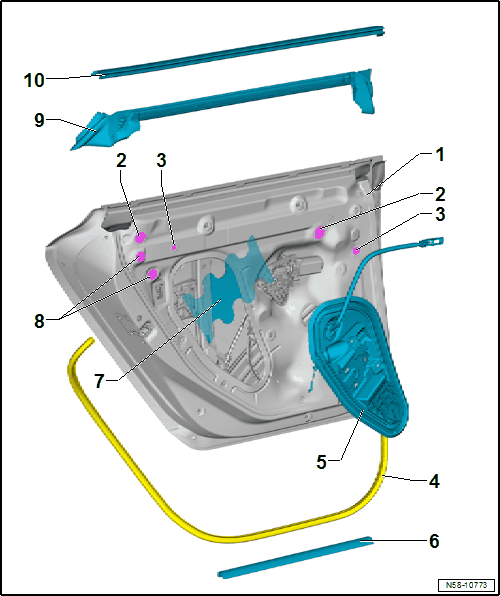

Overview - Door Components
NOTE:
The illustration shows the left side. The right side is identical.
- Rear Door
- Removing and installing. Refer to DOOR, REMOVING AND INSTALLING .
- Adjusting. Refer to DOOR, ADJUSTING .
- Sticker
- Quantity: 2
- 48 mm diameter
- Use commercially available duct tape if needed
- Sticker
- Quantity: 2
- 28 mm diameter
- Use commercially available duct tape if needed
- Outer Door Seal
- Removing and installing. Refer to OUTER DOOR SEAL, REMOVING AND INSTALLING .
- Replace after removing
- Door Inner Cover
- Removing and installing. Refer to DOOR INNER COVER, REMOVING AND INSTALLING .
- Replace after removing
- Door Gap Seal
- Not installed in all markets
- Removing and installing. Refer to DOOR GAP SEAL, REMOVING AND INSTALLING .
- Replace after removing
- Insulation
- Self-adhesive
- Installing:
-- Cut if necessary; 250 mm x 160 mm without bumps. Position as shown in the image.
-- Warm up using the Wiring Harness Repair Set - Hot Air Blower:VAS 1978/14A and then press firmly onto the outer door panel.
- Sticker
- Quantity: 2
- Diameter: 40 mm
- Use commercially available duct tape if needed
- Inner Window Shaft Strip
- Removing and installing. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
- Outer Window Shaft Strip
- Removing and installing. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .
