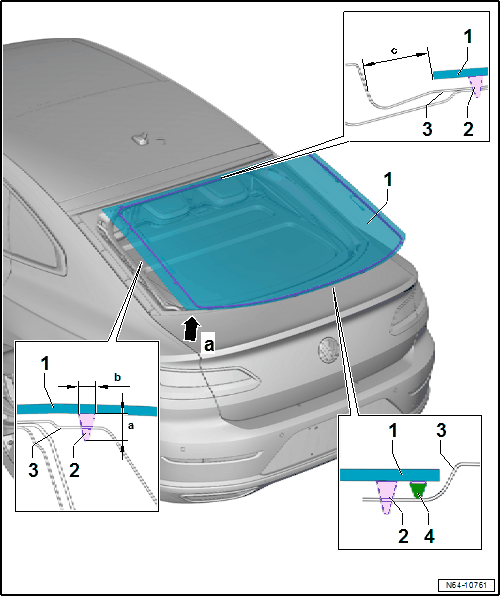

Overview - Rear Window
- Rear Window
- Removing and installing. Refer to REAR WINDOW, REMOVING AND INSTALLING .
- PUR Adhesive Sealant
- Bead diameter: width -dimension a- = 7 mm, height -dimension b- = 10 mm (including pre-coating, residual material on window glass and window flange)
- Minimum Curing Time. Refer to MINIMUM CURING TIMES FOR BONDED WINDOWS .
- Beginning and end of the adhesive bead at the -arrow-
- Body Flange
- Spacer
