Overview - Door

NOTE:

The illustration shows the left side. The right side is identical.

After replacing the A-pillar, the bolts -2 and 5- as well as -14 and 17- are to be tightened to another tightening specification.

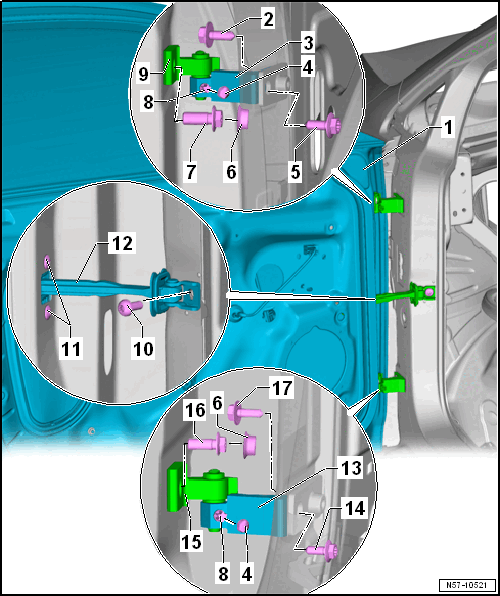

Fig 1: Exploded View Of Door
GWWN57-10521Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Front Door
  2. Bolt
    • Loosening one time to adjust the door is permitted. Always replace afterward.
    • 50 Nm
      NOTE:

      Another tightening specification must be observed after replacing the A-pillar.

      Tightening specification after replacing the A-pillar: 20 Nm + 90°

  3. Door Hinge
    • The hinge is divided. The upper and lower section can be replaced separately if necessary.
    • The bolt -8- attaches the hinge lower section to the upper section.
  4. Cap
    • For the bolt -8-
    • Is not installed in all markets.
  5. Bolt
    • Installed from the vehicle interior
    • Loosening one time to adjust the door is permitted. Always replace afterward.
    • The instrument panel is not removed for loosening and tightening.
    • To remove and install, the instrument panel must be removed. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
    • 50 Nm
      NOTE:

      Another tightening specification must be observed after replacing the A-pillar.

      Tightening specification after replacing the A-pillar: 20 Nm + 90°

  6. Cap
    • For bolts -7 and 16-
    • Is not installed in all markets.
  7. Bolt
    • Loosening one time to adjust the door is permitted. Always replace afterward.
    • 50 Nm
  8. Bolt
    • Attaches the hinge upper section -3- to the hinge lower section -6-
    • 27 Nm
      NOTE:

      After replacing the lower section of the door hinge half (body-side half of the hinge), a different tightening specification must be maintained.

      Tightening specification after replacing the lower section of the hinge: 20 Nm + 90°

  9. Door Hinge
    • The hinge has two sections. The upper and lower section can be replaced separately if necessary.
    • The bolt -5- attaches the upper section to the hinge lower section.
  10. Bolt
    • 20 Nm +90
    • Replace after removing
  11. Bolt
    • Quantity: 2
    • 9 Nm
  12. Door Arrester
  13. Door Hinge
    • The hinge has two sections. The upper and lower section can be replaced separately if necessary.
    • The bolt -8- attaches the hinge lower section to the upper section.
  14. Bolt
    • Installed from the vehicle interior
    • Loosening one time to adjust the door is permitted. Always replace afterward.
    • To remove and install, the A-pillar lower trim panel must be removed. Refer to A-PILLAR GAP COVER, REMOVING AND INSTALLING .
    • 50 Nm
      NOTE:

      Another tightening specification must be observed after replacing the A-pillar.

      Tightening specification after replacing the A-pillar: 20 Nm + 90°

  15. Door Hinge
    • The hinge has two sections. The upper and lower section can be replaced separately if necessary.
    • The bolt -16- attaches the upper section to the hinge lower section.
  16. Bolt
    • Loosening one time to adjust the door is permitted. Always replace afterward.
    • 50 Nm
  17. Bolt
    • Loosening one time to adjust the door is permitted. Always replace afterward.
    • 50 Nm
      NOTE:

      Another tightening specification must be observed after replacing the A-pillar.

      Tightening specification after replacing the A-pillar: 20 Nm + 90°
