Outer Window Shaft Strip, Removing And Installing: Installing
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
NOTE:
It is permissible to use assembly aids.
Do not use any striking tools to install the outer window shaft strip.

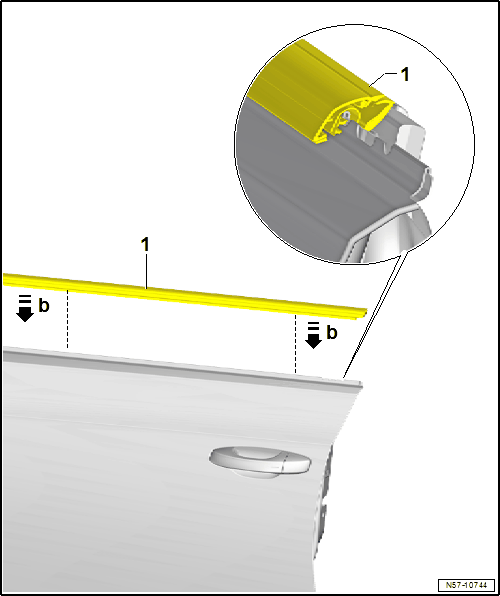

-- Position the outer window shaft strip -1- behind the exterior rearview mirror.
-- Align the outer window shaft strip -1- and push in evenly by hand on the door flange -b arrows-.
