Slotted Guide Rail Guide, Removing And Installing: Installing

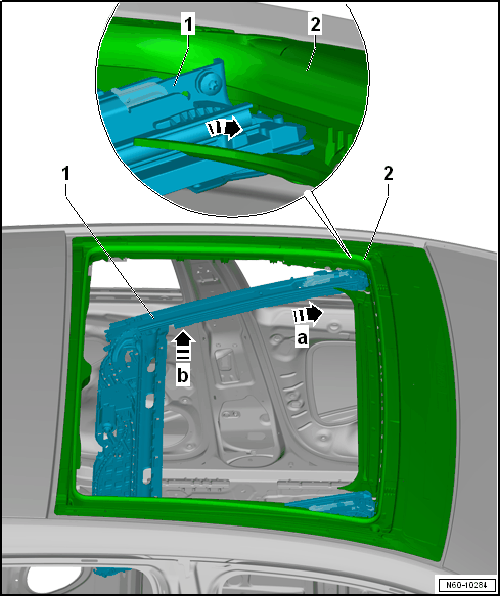

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install the guide rails -1- parallel in the sunroof frame -2-.

-- Guide the guide rails -1- at the rear onto the sunroof frame.

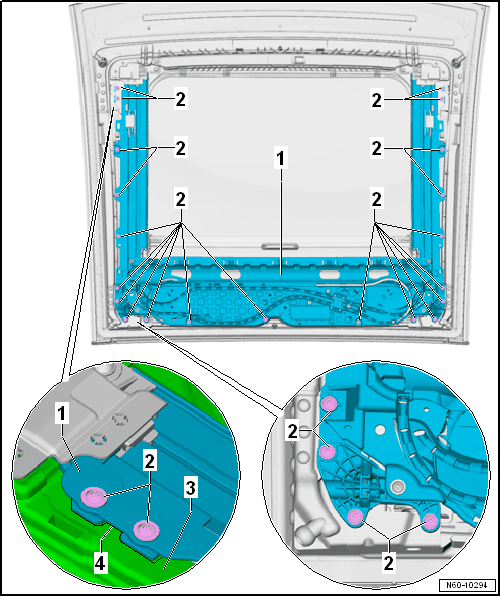

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Position the guide rails -1- on the sunroof frame -2-.

-- Install all bolts -2- and tighten lightly.

-- Align the guide rails -1- according to the marking -6-.

-- Tighten the bolts -2-.

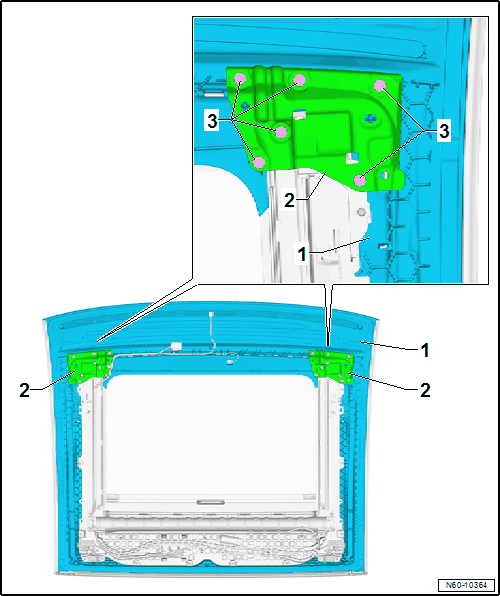

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Install all bolts -3- and tighten lightly.

-- Tighten the bolts -3-.

-- Perform the rest of the installation in the reverse order of removal.
