SUNROOF CONTROL MODULE Sunroof Control Module -J245-, PROGRAMMING
NOTE:
After the glass panel, a motor, or the tilting mechanism was changed, an adaptation must be performed.
Pinch protection is switched off when performing an adaptation.
Sunroof Motor Adaptation
Ignition switched on.

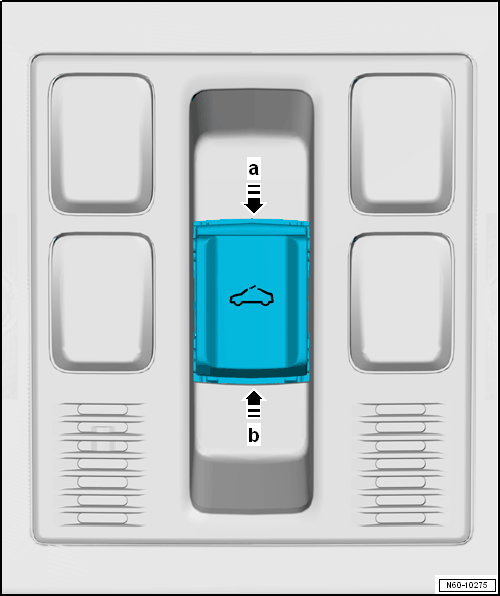

-- Press the button forward -arrow b- and hold in this position during the entire adaptation procedure (approximately 20 seconds).
-- During the adaptation, the glass panel will first close and then retract approximately 200 mm.
-- After the panel closes again, the adaptation process is complete and the button can be released.
