Overview - Front Backrest, Power Lumbar Support

NOTE:

The overview shows the driver side as an example.

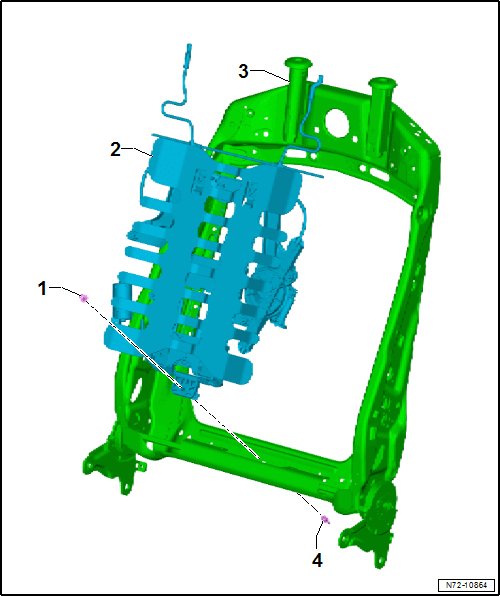

Fig 1: Exploded View Of Front Backrest, Power Lumbar Support
GWWN72-10864Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Washer
    • No replacement part
    • Fused in the lumbar support
  2. Lumbar Support
  3. Backrest Frame
  4. Rivet
