Headrest Guide, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the backrest cover with the backrest cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .

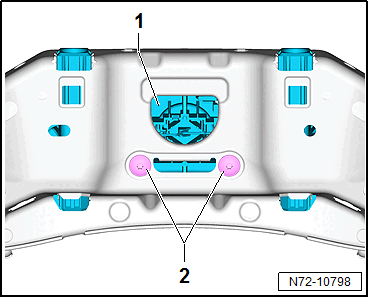

-- Remove the bolts -2- for the headrest guide -1-.

-- Push the retainers of the headrest guide -1- inward.

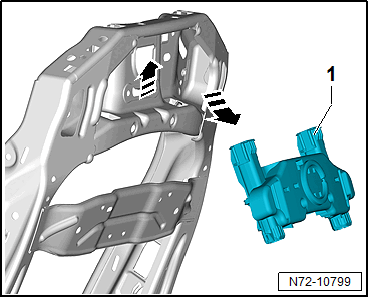

-- Push the headrest guide -1- upward as far as possible and remove toward the rear downward out of the backrest frame.
