Front Backrest, Removing And Installing: Removing

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Remove the tunnel-side seat trim panel. Refer to TUNNEL-SIDE SEAT TRIM, REMOVING AND INSTALLING .

-- Disconnect the connectors for the backrest wiring harnesses.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

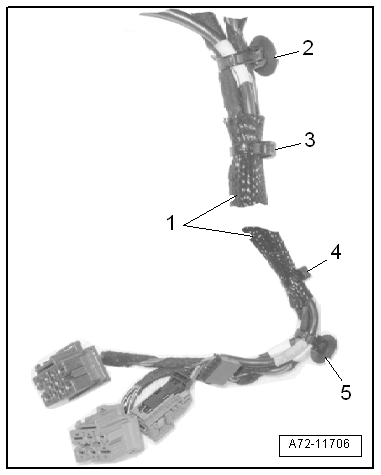

-- Unclip the clips -2 and 5- from the wiring harness -1- on the seat pan.

-- Loosen the wiring harness -1- with the mesh hose from the seat pan.

-- To do so, loosen all cable ties -3 and 4-.

The wiring harness between the connector station and the thorax airbag is continuous.

-- Guide the wiring harness to the thorax airbag out of the mesh hose.

-- Remove the bolts -1 through 4-.

Fig 1: Backrest Tightening Sequence

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Tilt the backrest -5- forward on the seat pan.

-- Move the seat pan cushion to the side.

-- Carefully remove the wiring harness for the thorax airbag from the seat pan.

-- Remove the backrest.
