Front Backrest, Removing And Installing: Installing
Install in the reverse order of removal while noting the following:
-- Replace the damaged cable ties and clips.
-- Route the wires in their original locations.
Clean the threaded holes for the bolts for example with a thread tap.

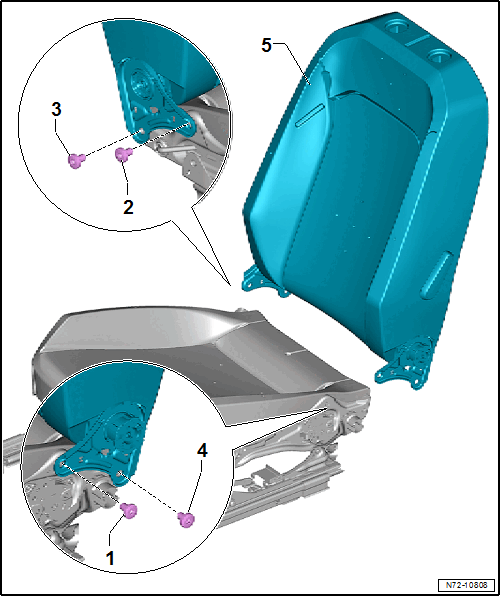

Backrest Tightening Specification and Sequence
| Step | Bolt | Tightening Specification |
|---|---|---|
| 1 | -1 through 4- | Install all the way by hand |
| 2 | -1- | 35 Nm |
| 3 | -2- | 35 Nm |
| 4 | -3- | 35 Nm |
| 5 | -4- | 35 Nm |
