Backrest Kick And Puncture Protection, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the backrest cover with the backrest cushion. Refer to BACKREST COVER AND CUSHION, REMOVING AND INSTALLING .

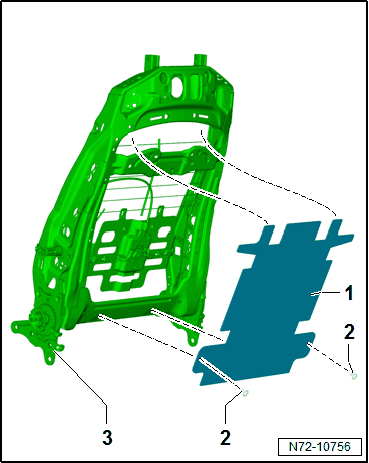

-- At the top of the kick protection -1-, remove both surfaces bonded at the sides from the backrest frame -3-.

-- Unclip the two push buttons -2- from the backrest frame -3- using the :T10236  .

-- Remove the kick protection -1- from the backrest frame -3-.
