Front FOOTWELL Center Console Trim Panel, Removing And Installing: Removing

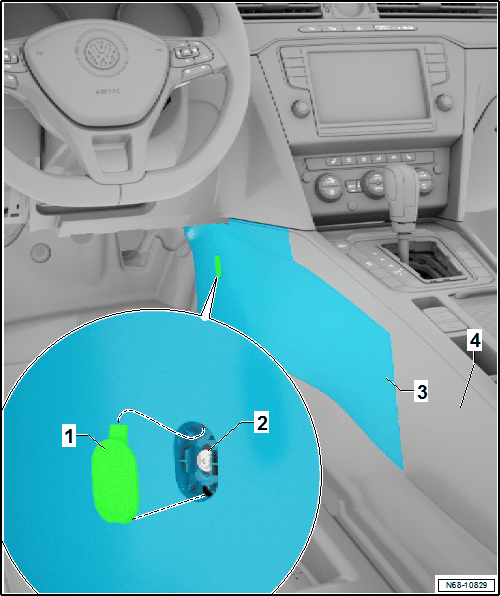

-- Remove the cap -1- from the front footwell center console trim panel -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolt -2-.

-- Unclip the front footwell center console trim panel -3- in the direction of seat from the mounts in the upper center area.

-- Pull the front footwell center console trim panel -3- out of the remaining mounts in the center console -4- and remove it.
