Display Control Head Trim, Removing And Installing: Removing

-- Remove the radio/navigation system frame. Refer to RADIO/NAVIGATION SYSTEM FRAME, REMOVING AND INSTALLING .

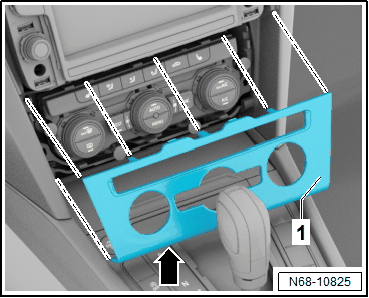

-- Engage the :3438  at the left lower end of the trim -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Carefully unclip the trim -1- from the instrument panel installation opening using the :3438  .
