Bumper Cover Painting Instructions In Lane Change Assistance Control Module Area

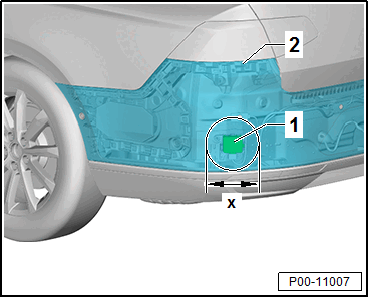

Bumper cover in the area of the lane change assistance control module
Left side shown the right side is a mirror image depending on the vehicle model and equipment
The area of the lane change assistance control module may not be covered.
To avoid malfunctions of the control module (lane change assistance) -1- pay attention to the following parameter when painting the bumper cover -2-.
- Do not exceeded the maximum paint coat thickness of 150 μm in the area of the control modules (lane change assistance) -1-.
- A plastic repair may not be preformed in this area in a vicinity of minimum dimension -x- = 25 cm.
- Smoothing work may not be preformed in this area in a vicinity of minimum dimension -x- = 25 cm.
- Triple panting is not permitted on the bumper cover -2-.
- Before beginning painting check using a grinding pattern in the adjacent area if the bumper cover -2- was already repainted.
- Spot repair of the area of the control modules (lane change assistance) -1- is not permitted.
