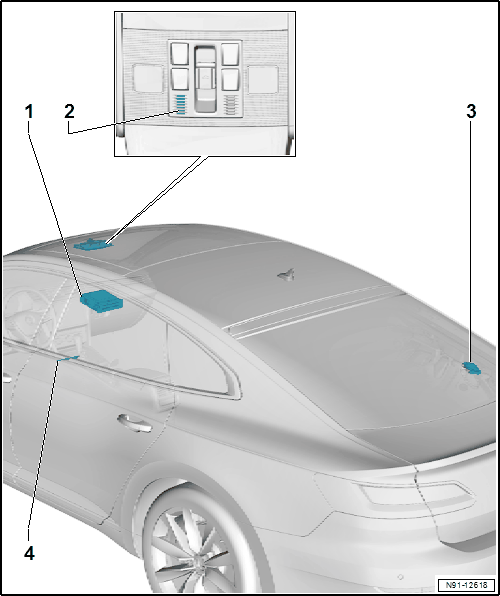

Component Location Overview - Telephone System
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- Telephone Microphone -R38-
- In the Front Interior Lamp -WX1-
- Removing and Installing. Refer to Telephone Microphone -R38-, REMOVING AND INSTALLING .
- Mobile Communication 2-Way Signal Amplifier -J984-
- In the upper right side of the luggage compartment behind the luggage compartment side trim panel
- Removing and Installing. Refer to Mobile Communication 2-Way Signal Amplifier -J984-, REMOVING AND INSTALLING .
- Storage Compartment with Cell Phone Interface -R265-
- On the bottom of the front center console storage compartment
- Removing and Installing. Refer to Storage Compartment with Cell Phone Interface -R265-, REMOVING AND INSTALLING .
