Digital Sound System Control Module -J525- BRACKET, REMOVING AND INSTALLING: Removing

-- Remove the digital sound system control module. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .

-- If necessary, fold up the carpet and floor insulation at the center tunnel and floor panel.

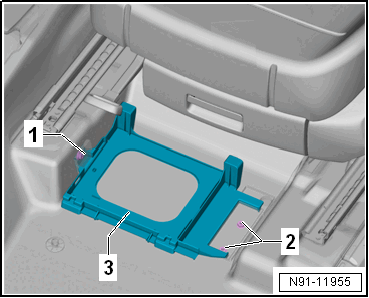

-- Remove the screw -1- on the center tunnel.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the nuts -2- on the floor.

-- Remove the bracket for the control module -3-.
