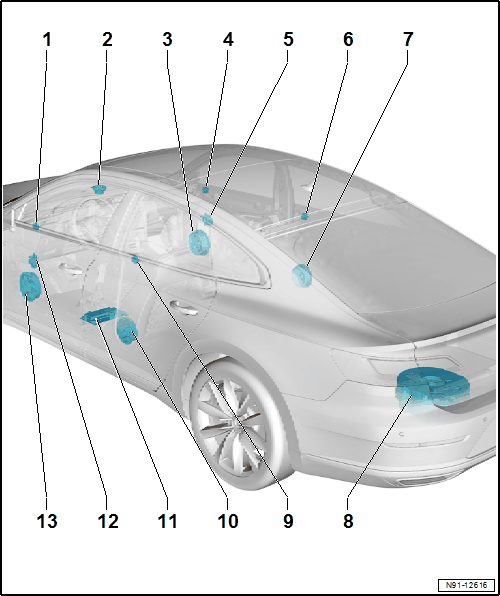

Component Location Overview - Sound System
- Left Front Treble Speaker -R20-
- On the interior door mechanism of the front door trim panel
- Removing and Installing. Refer to Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, REMOVING AND INSTALLING .
- Center Speaker -R208-
- On the center instrument panel
- Removing and Installing. Refer to CENTER SPEAKER, REMOVING AND INSTALLING .
- Right Front Bass Speaker -R23-
- In the front door at the bottom
- Removing and Installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING .
- Right Front Treble Speaker -R22-
- On the interior door mechanism of the front door trim panel
- Removing and Installing. Refer to Left Front Treble Speaker -R20- /Right Front Treble Speaker -R22-, REMOVING AND INSTALLING .
- Right Front Midrange Speaker -R104-
- In front door trim
- Removing and Installing. Refer to FRONT MIDRANGE SPEAKER, REMOVING AND INSTALLING .
- Right Rear Treble Speaker -R16-
- On the interior door mechanism of the rear door trim panel
- Removing and Installing. Refer to Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-, REMOVING AND INSTALLING .
- Right Rear Bass Speaker -R17-
- In the bottom of the rear door
- Removing and Installing. Refer to Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-, REMOVING AND INSTALLING .
- Subwoofer -R211-
- In the spare wheel well
- Removing and Installing. Refer to Subwoofer -R211-, REMOVING AND INSTALLING .
- Left Rear Treble Speaker -R14-
- On the interior door mechanism of the rear door trim panel
- Removing and Installing. Refer to Left Rear Treble Speaker -R14- /Right Rear Treble Speaker -R16-, REMOVING AND INSTALLING .
- Left Rear Bass Speaker -R15-
- In the bottom of the rear door
- Removing and Installing. Refer to Left Rear Bass Speaker -R15- /Right Rear Bass Speaker -R17-, REMOVING AND INSTALLING .
- Digital Sound System Control Module -J525-
- Under the left front seat
- Removing and Installing. Refer to CONTROL MODULE/DIGITAL SOUND SYSTEM AMPLIFIER, REMOVING AND INSTALLING .
- Left Front Midrange Speaker -R103-
- In front door trim
- Removing and Installing. Refer to FRONT MIDRANGE SPEAKER, REMOVING AND INSTALLING .
- Left Front Bass Speaker -R21-
- In the front door at the bottom
- Removing and Installing. Refer to Left Front Bass Speaker -R21- /Right Front Bass Speaker -R23-, REMOVING AND INSTALLING .
