Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.

-- Carefully unclip the speaker trim -1- with the :3409  from the mounts in the instrument panel -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

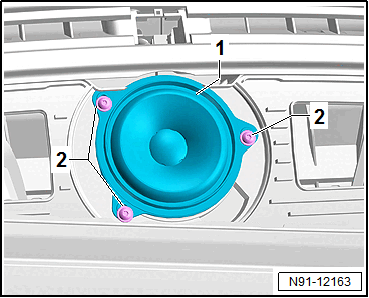

-- Remove the bolts -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pull the center speaker -1- upward out of the instrument panel until the connector is accessible.

-- Release and disconnect the connector -1-.

-- Remove the center speaker -1-.
