Emergency Call Module Control Module Battery, Removing And Installing: Removing

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- "0075 - Emergency battery, replacing" function Vehicle Diagnostic Tester.

-- Remove the emergency call module control module. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .

-- Remove the bolt -arrow- and remove the battery tray cover -1-.

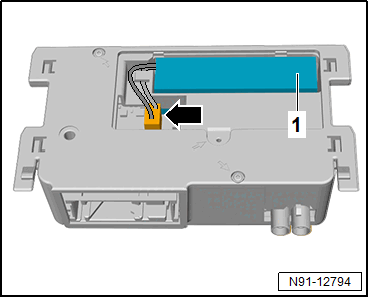

-- Release and disconnect the connector -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the emergency call module control module battery -1-.
