CONNECTION FOR EXTERNAL MULTIMEDIA DEVICES, REMOVING AND INSTALLING, USB Connection 2 -U42- IN FRONT CENTER CONSOLE STORAGE COMPARTMENT: Removing

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.

-- Remove the center console insert. Refer to CENTER CONSOLE INSERT, REMOVING AND INSTALLING .

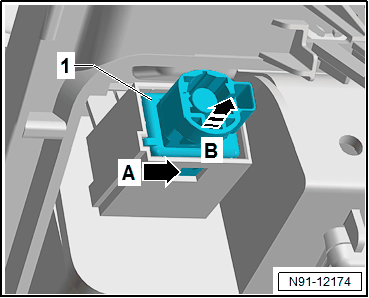

-- Release the upper and lower retaining tab -arrow A- on the USB connection -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the USB connection -1- in the direction of -arrow B-.
