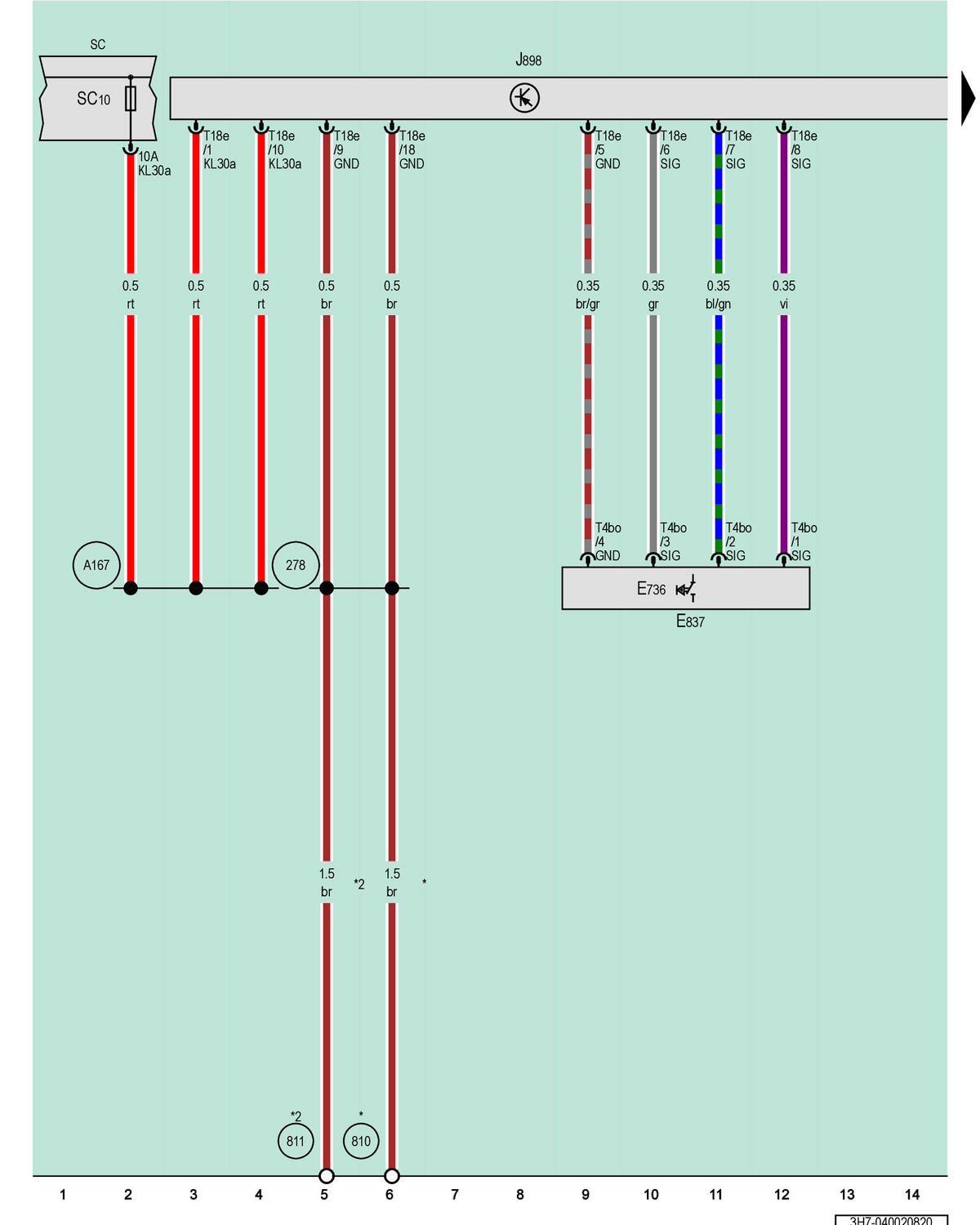

Windshield Projection Control Unit, Windshield Projection Head Up Display Control Module, Fuse Panel C
E736
Windshield Projection Head Up Display Button
E837
Windshield Projection Control Unit
J898
Windshield Projection Head Up Display Control Module
SC
Fuse Panel C
SC10
Fuse 10 (On Fuse Panel C)
T4bo
4-Pin Connector, Red
T18e
18-Pin Connector, Naturally Cloudy
278
Ground Connection 4 (in Interior Wiring Harness)
810
Ground Connection on Left Center Instrument Panel Central Tube
811
Ground Connection on Right Center Instrument Panel Central Tube
A167
Positive Connection 3 (30a) (in Instrument Panel Wiring Harness)
*
For LHD Vehicles
*2
For RHD Vehicles
