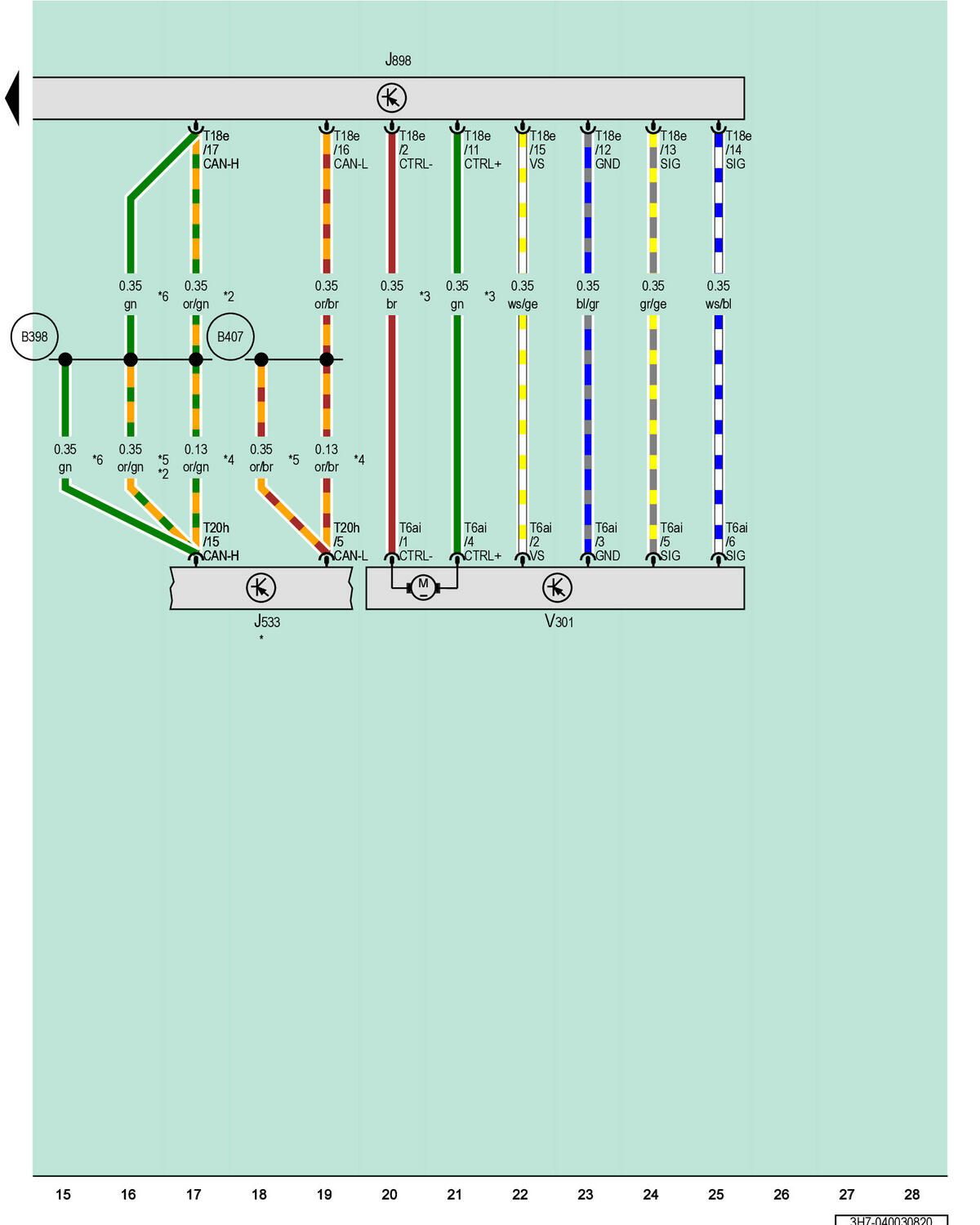

Data Bus On Board Diagnostic Interface, Windshield Projection Head Up Display Control Module, Display Opening/Closing Motor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

J898

Windshield Projection Head Up Display Control Module

T6ai

6-Pin Connector, Black

T18e

18-Pin Connector, Naturally Cloudy

T20h

20-Pin Connector, Red

V301

Display Opening/Closing Motor

B398

Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)

B407

Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)

*

Different Connector Color Possible

*2

Through July 2018

*3

Different Wire Color Possible

*4

Through November 2017

*5

From November 2017

*6

From July 2018
