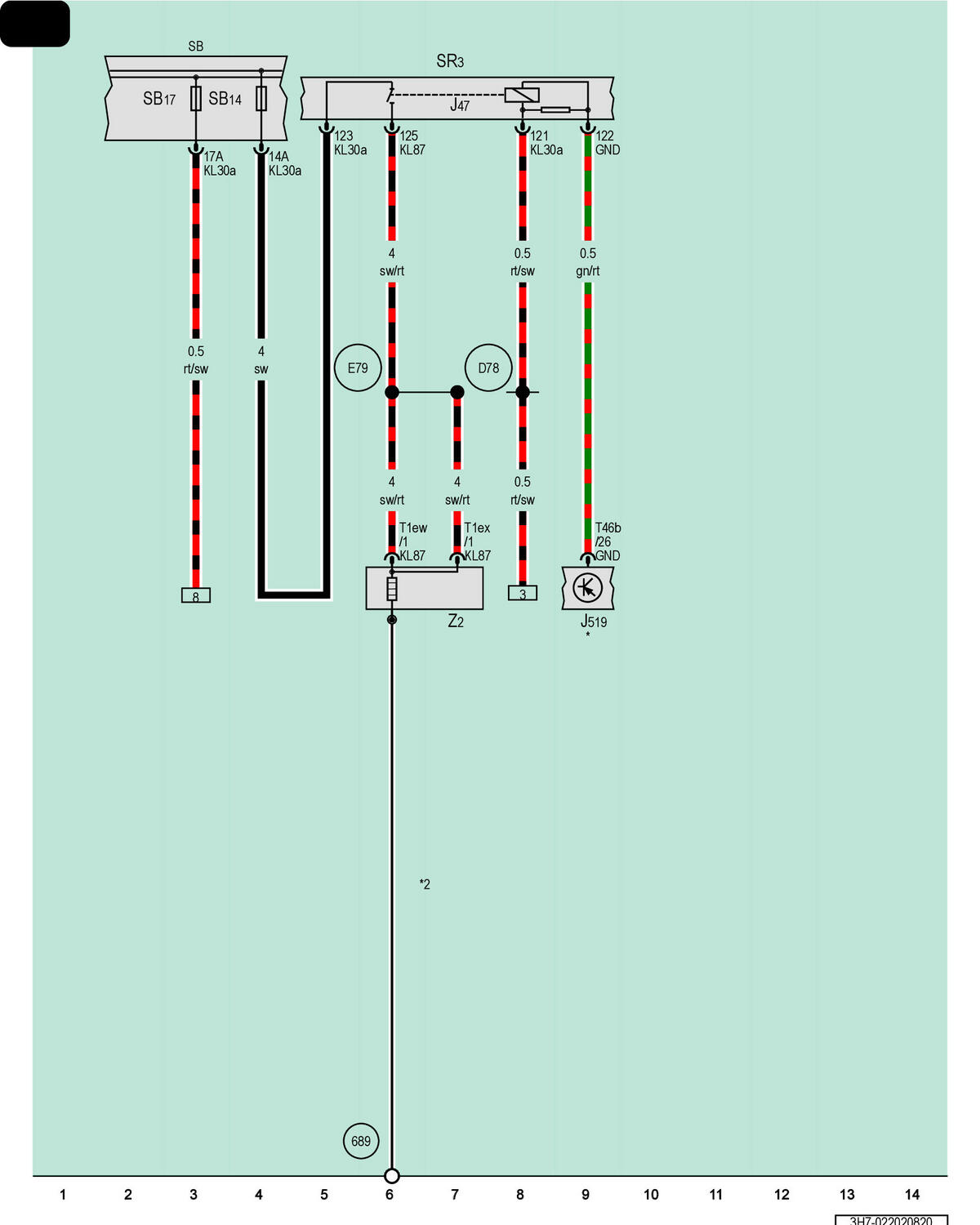

Windshield Defogger Relay, Vehicle Electrical System Control Module, Fuse Panel B, Relay And Fuse Panel 3, Windshield Defogger

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J47

Windshield Defogger Relay

J519

Vehicle Electrical System Control Module

SB

Fuse Panel B

SR3

Relay and Fuse Panel 3

SB14

Fuse 14 (On Fuse Panel B)

SB17

Fuse 17 (On Fuse Panel B)

T1ew

1-Pin Connector, Black

T1ex

1-Pin Connector, Black

T46b

46-Pin Connector, Black

Z2

Windshield Defogger

689

Ground Connection on Roof, Center Front

D78

Positive Connection 1 (30a) (in Engine/Motor Compartment Wiring Harness)

E79

Connection 87a (in Engine Wiring Harness) 3

*

Activation Via Infotainment System Menu

*2

Ground Supply via the Housing
