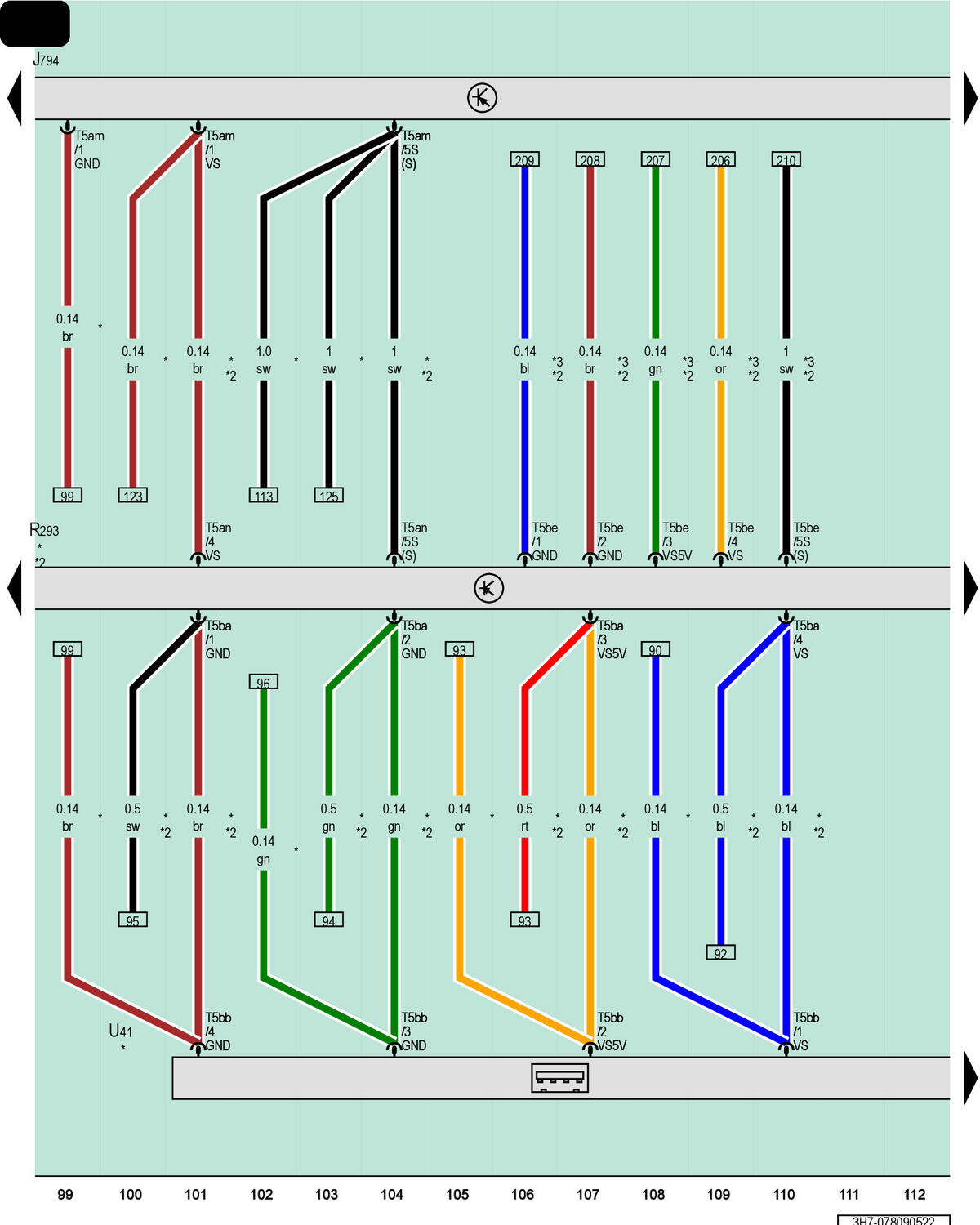

Information Electronics Control Module 1, USB Distributor, USB Connection 1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J794

Information Electronics Control Module 1

R293

Usb Distributor

T5Am

5-Pin Connector, Yellow

T5An

5-Pin Connector, Green

T5Ba

5-Pin Connector, Purple

T5Bb

5-Pin Connector, Green

T5Be

5-Pin Connector, Black

U41

Usb Connection 1

*

Depending On Equipment

*2

Through July 2022

*3

For Vehicles With Japan Equipment

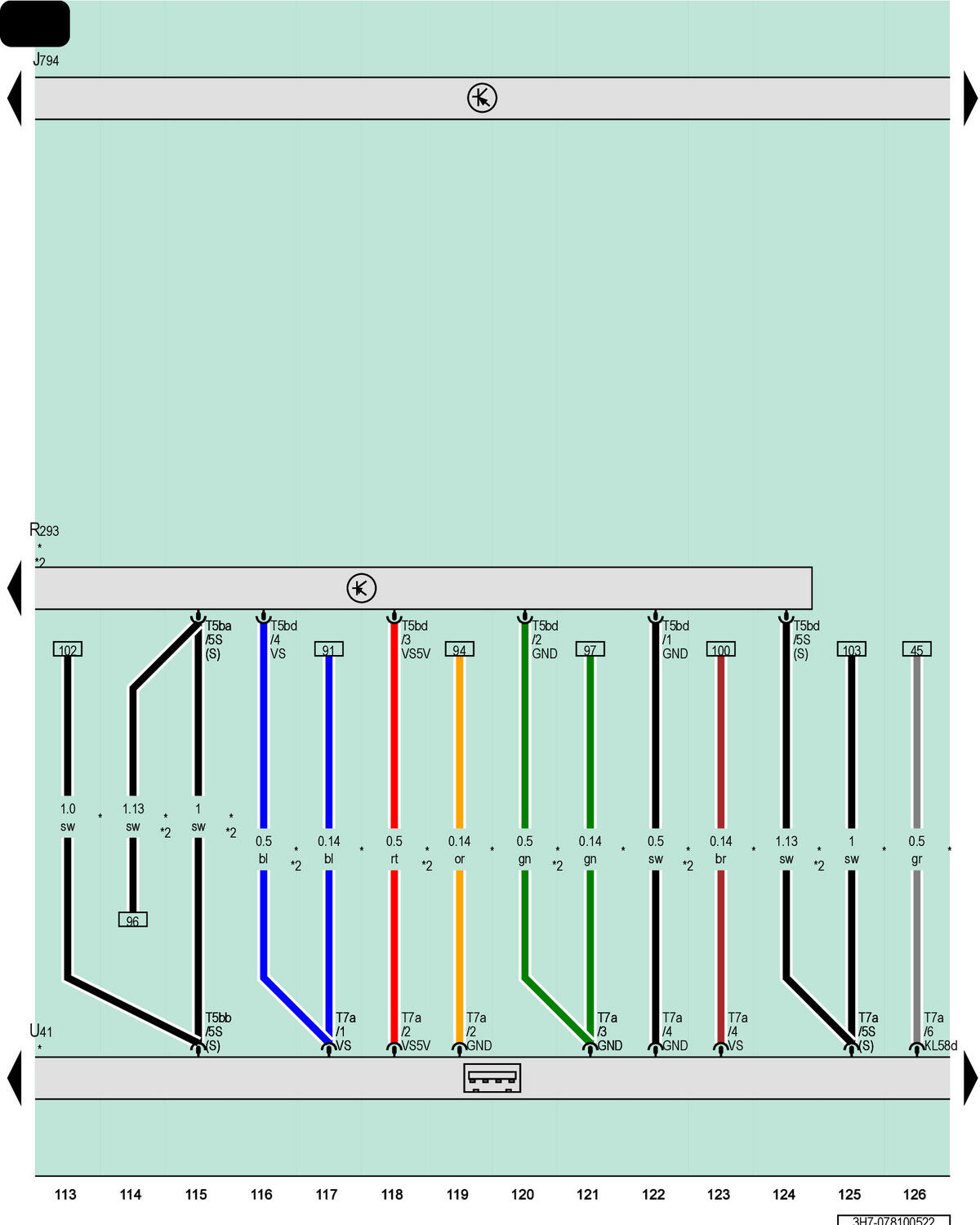

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J794

Information Electronics Control Module 1

R293

Usb Distributor

T5Ba

5-Pin Connector, Purple

T5Bb

5-Pin Connector, Green

T5Bd

5-Pin Connector, Brown

T7A

7-Pin Connector, Green

U41

Usb Connection 1

*

Depending On Equipment

*2

Through July 2022
