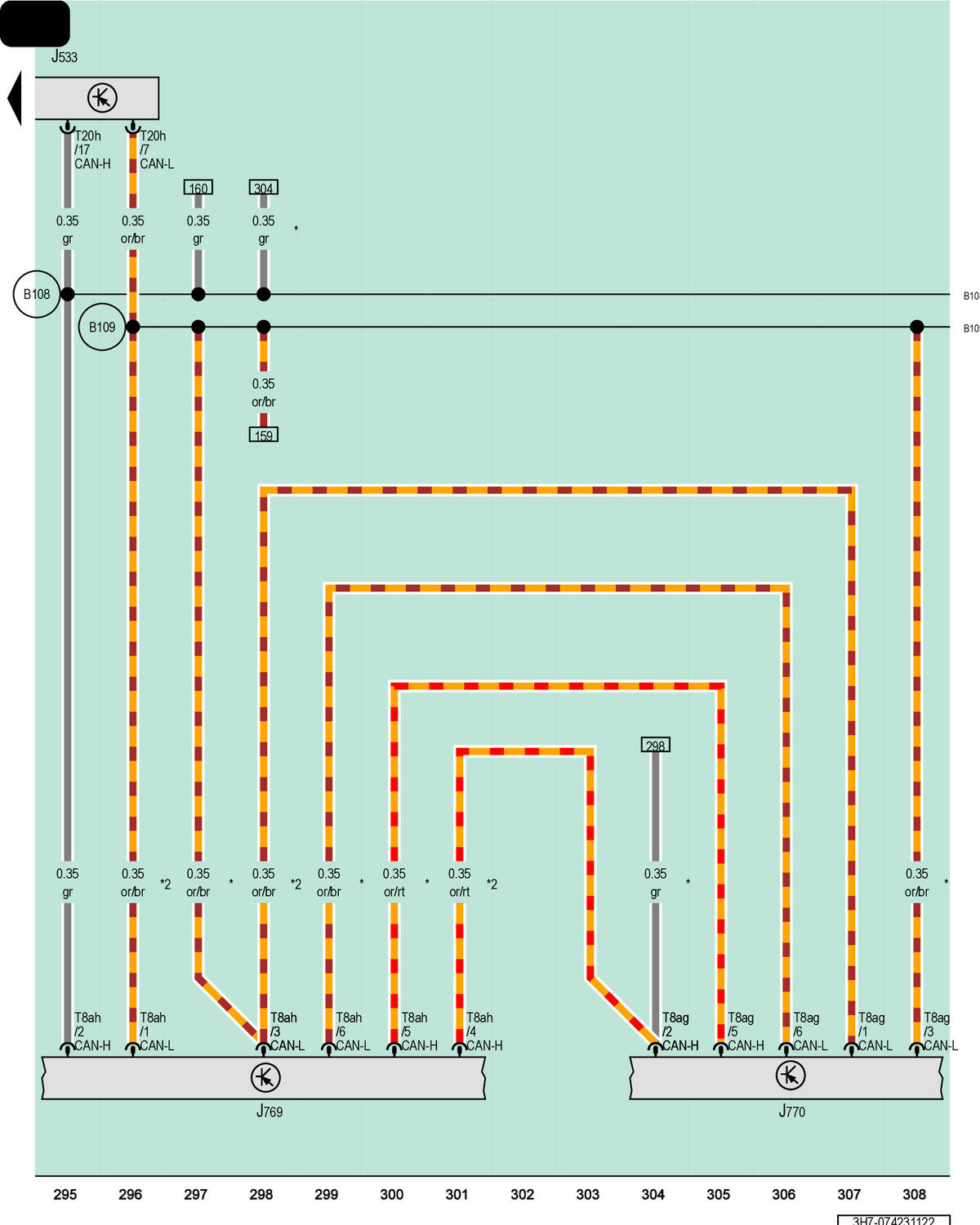

Data Bus On Board Diagnostic Interface, Lane Change Assistance Control Module, Lane Change Assistance Control Module 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

J769

Lane Change Assistance Control Module

J770

Lane Change Assistance Control Module 2

T8ag

8-Pin Connector, Black

T8ah

8-Pin Connector, Black

T20h

20-Pin Connector, Red

B108

CAN Bus Extended High Connection 1 (in Main Wiring Harness)

B109

CAN Bus Extended Low Connection 1 (in Main Wiring Harness)

*

Through July 2019

*2

From July 2019
