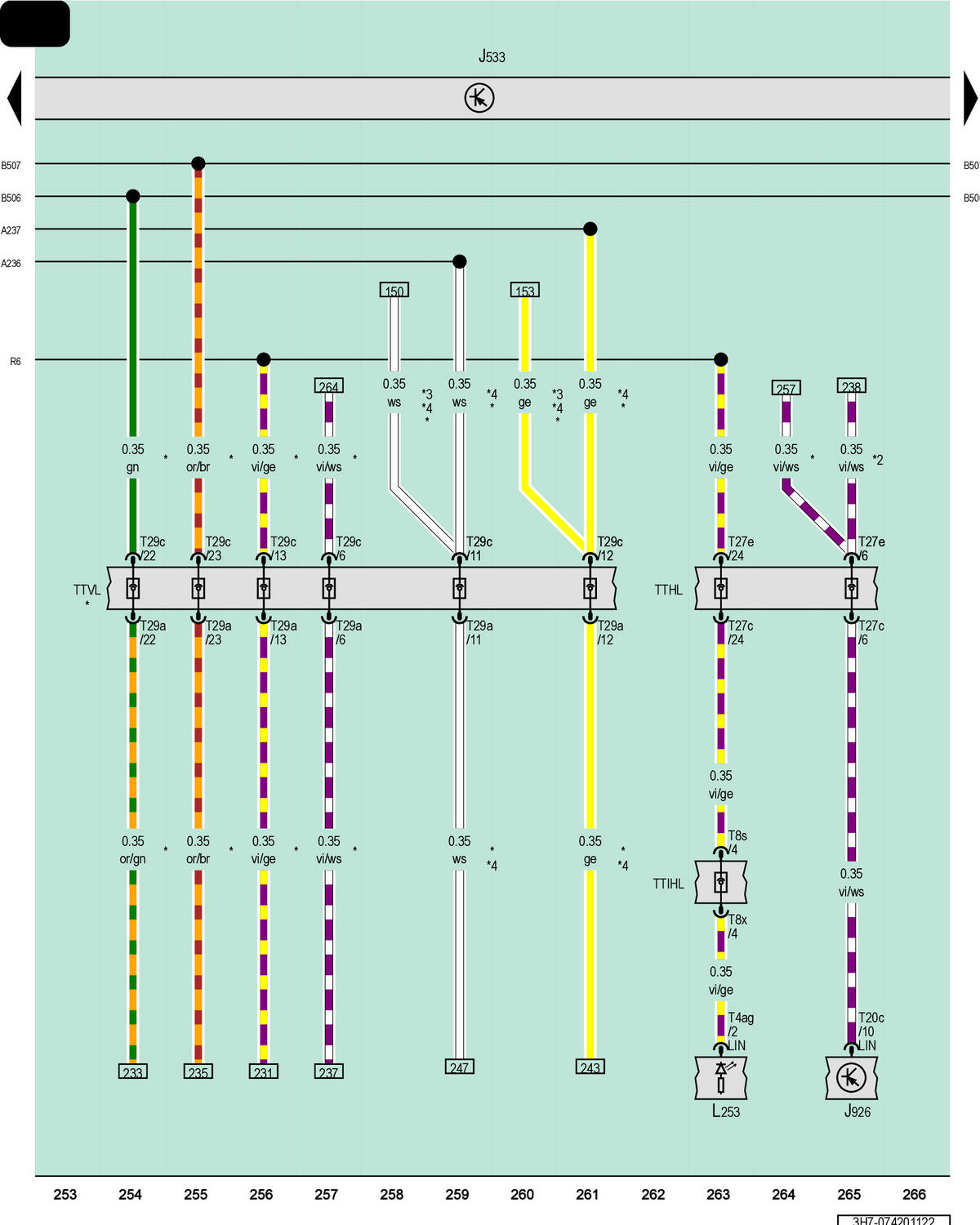

Data Bus On Board Diagnostic Interface, Driver Side Rear Door Control Module, Left Rear Door Contour Illumination Lamp

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface

J926

Driver Side Rear Door Control Module

L253

Left Rear Door Contour Illumination Lamp

T4ag

4-Pin Connector, Black

T8s

8-Pin Connector, Black

T8x

8-Pin Connector, Black

T20c

20-Pin Connector, Black

T27c

27-Pin Connector, Black

T27e

27-Pin Connector, Black

T29a

29-Pin Connector, White

T29c

29-Pin Connector, White

TTHL

Left Rear Door Coupling Point

TTIHL

Coupling Point in Left Rear Door

TTVL

Left Front Door Coupling Point

A236

CAN Bus Drive High Connection 1 (in Instrument Panel Wiring Harness)

A237

CAN Bus Drive Low Connection 1 (in Instrument Panel Wiring Harness)

B506

Comfort CAN Bus High Connection (in Interior Wiring Harness)

B507

Comfort CAN Bus Low Connection (in Interior Wiring Harness)

Positive Connection 1 (in Interior Lamp Wiring Harness)

For Vehicles with Peripheral Camera

For Vehicles without Peripheral Camera

For LHD Vehicles

For Vehicles with Near Field Communication
