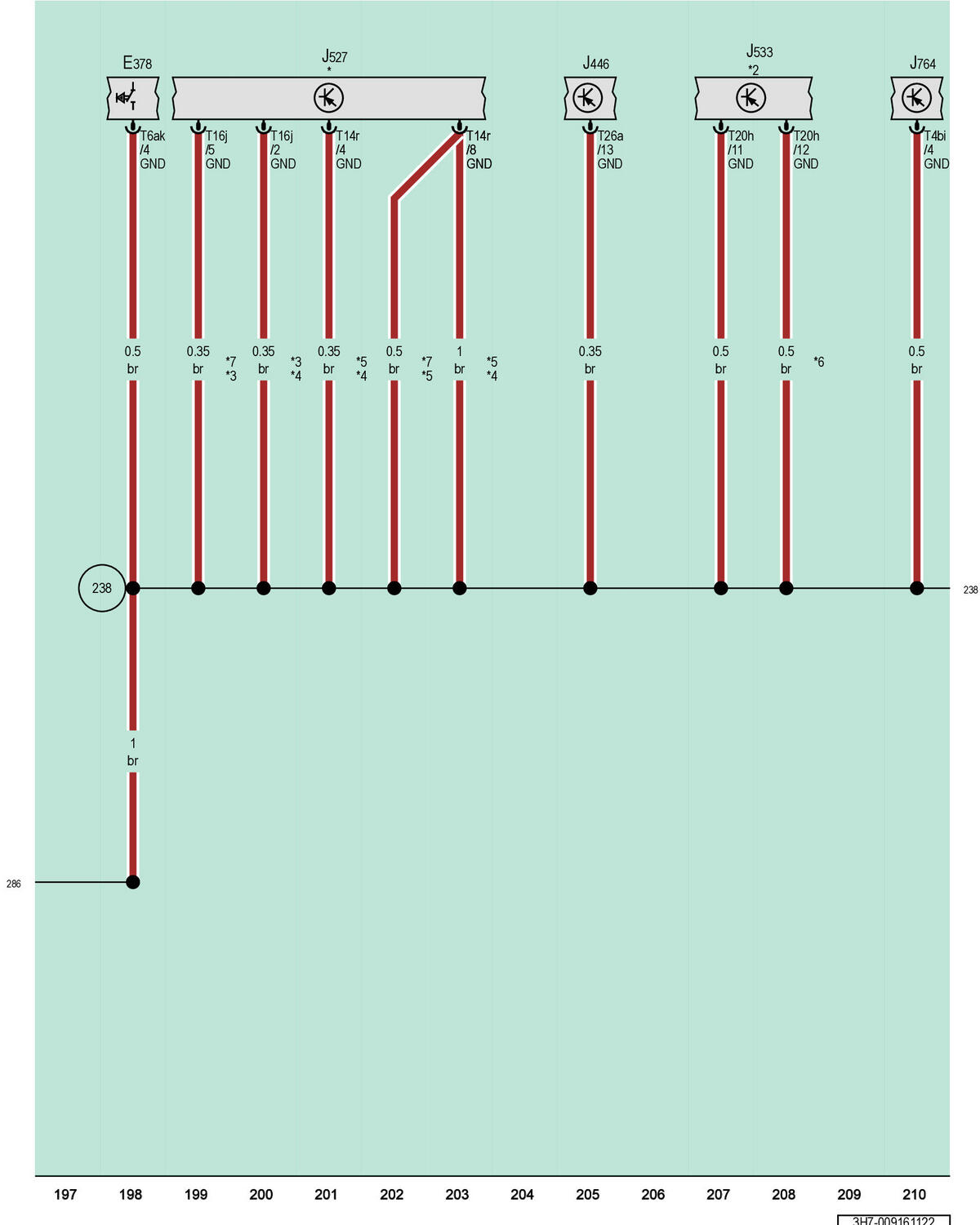

Start System Button, Parking Aid Control Module, Steering Column Electronics Control Module, Data Bus On Board Diagnostic Interface, Electronic Steering Column Lock Control Module
E378
Start System Button
J446
Parking Aid Control Module
J527
Steering Column Electronics Control Module
J533
Data Bus on Board Diagnostic Interface
J764
Electronic Steering Column Lock Control Module
T4bi
4-Pin Connector, Black
T6ak
6-Pin Connector, Black
T14r
14-Pin Connector, Black
T16j
16-Pin Connector, Black
T20h
20-Pin Connector, Red
T26a
26-Pin Connector, Black
238
Ground Connection 1 (in Interior Wiring Harness)
286
Ground Connection 8 (in Interior Wiring Harness)
*
Refer to Applicable Wiring Diagram
*2
Different Connector Color Possible
*3
For Vehicles Without Heated Steering Wheel
*4
Through July 2018
*5
For Vehicles with Heated Steering Wheel
*6
For Vehicles Without Start/Stop System
*7
From July 2018
