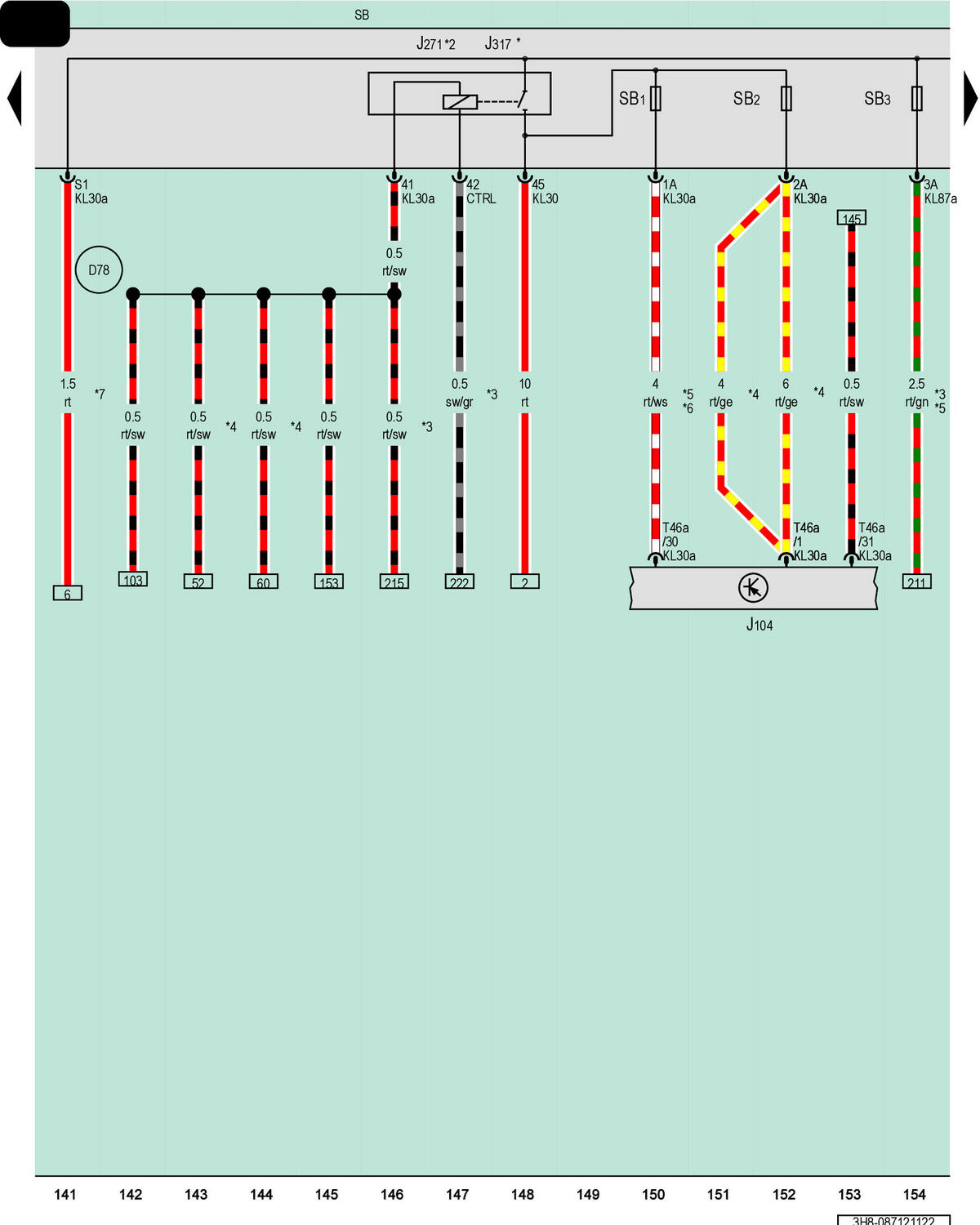

Abs Control Module, MOTRONIC Engine Control Module Power Supply Relay, Terminal 30 Power Supply Relay, Fuse Panel B

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J104

ABS Control Module

J271

Motronic Engine Control Module Power Supply Relay

J317

Terminal 30 Power Supply Relay

SB

Fuse Panel B

SB1

Fuse 1 (On Fuse Panel B)

SB2

Fuse 2 (On Fuse Panel B)

SB3

Fuse 3 (On Fuse Panel B)

T46a

46-Pin Connector, Black

D78

Positive Connection 1 (30a) (in Engine/Motor Compartment Wiring Harness)

*

For Vehicles with Diesel Engine

*2

For Vehicles with Gasoline Engine

*3

Refer to Applicable Engine Wiring Diagram

*4

Depending on Equipment

*5

Diameter Depends on Equipment

*6

Refer to Applicable Wiring Diagram for ABS

*7

For Vehicles with Hybrid Drive
