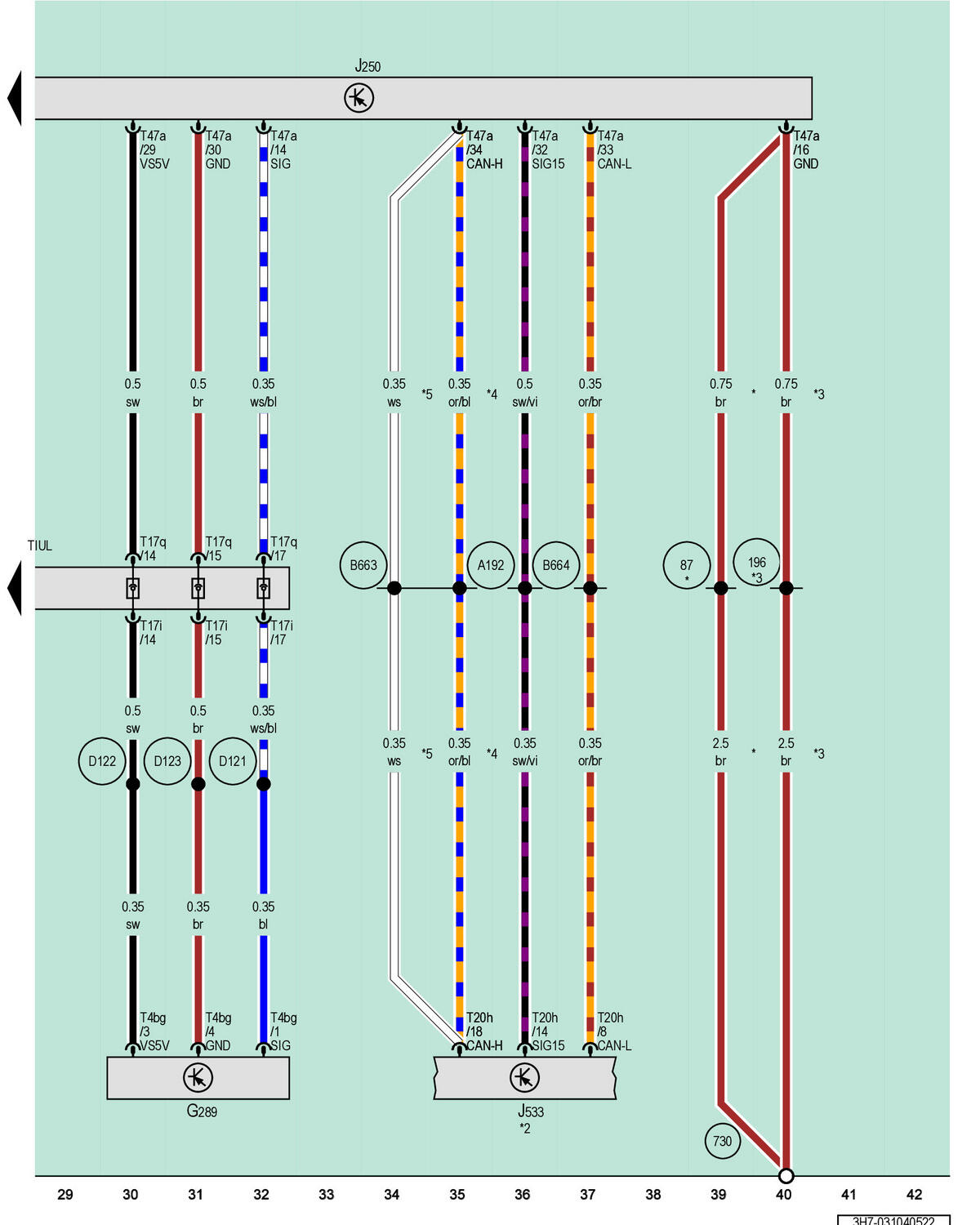

Right Front Level Control System Sensor, Electronic Damping Control Module, Data Bus On Board Diagnostic Interface

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G289

Right Front Level Control System Sensor

J250

Electronic Damping Control Module

J533

Data Bus on Board Diagnostic Interface

T4bg

4-Pin Connector, Black

T17i

17-Pin Connector, White

T17q

17-Pin Connector, White

T20h

20-Pin Connector, Red

T47a

47-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

87

Ground Connection 2 (in Rear Wiring Harness)

196

Ground Connection 3 (in Rear Wiring Harness)

730

Ground Connection 1 on Right Rear Wheel Housing

A192

Positive Connection 3 (15a) (in Instrument Panel Wiring Harness)

B663

Suspension Sensor CAN Bus High Connection (in Main Wiring Harness)

B664

Suspension Sensor CAN Bus Low Connection (in Main Wiring Harness)

D121

Connection 19 (in Engine/Motor Compartment Wiring Harness)

D122

Connection 20 (in Engine/Motor Compartment Wiring Harness)

D123

Connection 21 (in Engine/Motor Compartment Wiring Harness)

*

Sedan

*2

Different Connector Color Possible

*3

Sportback

*4

Through July 2018

*5

From July 2018
