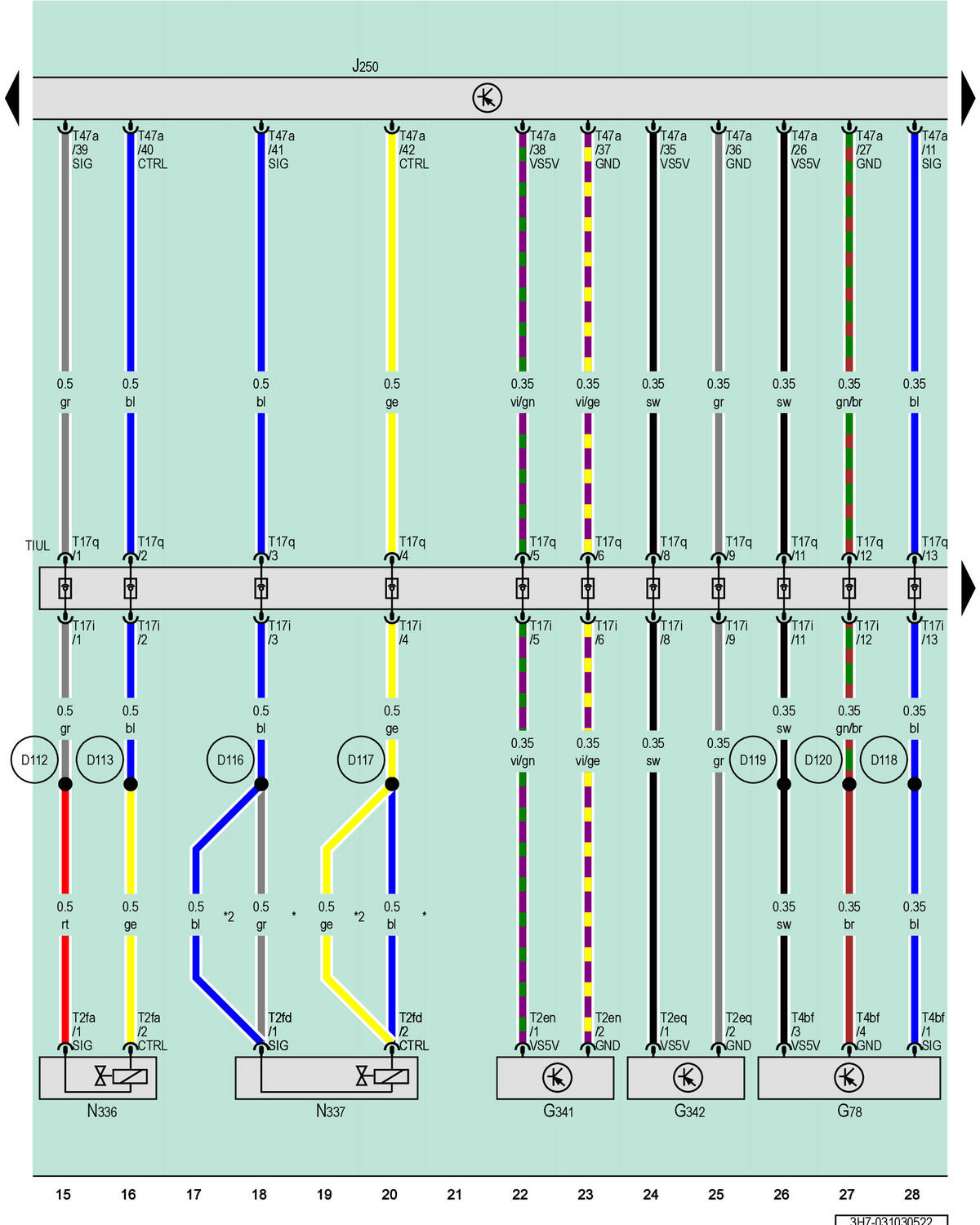

Left Front Level Control System Sensor, Left Front Body Acceleration Sensor, Right Front Body Acceleration Sensor, Electronic Damping Control Module, Left Front Damping Adjustment Valve, Right Front Damping Adjustment Valve

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G78

Left Front Level Control System Sensor

G341

Left Front Body Acceleration Sensor

G342

Right Front Body Acceleration Sensor

J250

Electronic Damping Control Module

N336

Left Front Damping Adjustment Valve

N337

Right Front Damping Adjustment Valve

T2en

2-Pin Connector, Black

T2eq

2-Pin Connector, Black

T2fa

2-Pin Connector, Black

T2fd

2-Pin Connector, Black

T4bf

4-Pin Connector, Black

T17i

17-Pin Connector, White

T17q

17-Pin Connector, White

T47a

47-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

D112

Connection 10 (in Engine/Motor Compartment Wiring Harness)

D113

Connection 11 (in Engine/Motor Compartment Wiring Harness)

D116

Connection 14 (in Engine/Motor Compartment Wiring Harness)

D117

Connection 15 (in Engine/Motor Compartment Wiring Harness)

D118

Connection 16 (in Engine/Motor Compartment Wiring Harness)

D119

Connection 17 (in Engine/Motor Compartment Wiring Harness)

D120

Connection 18 (in Engine/Motor Compartment Wiring Harness)

*

Through July 2020

*2

From July 2020
