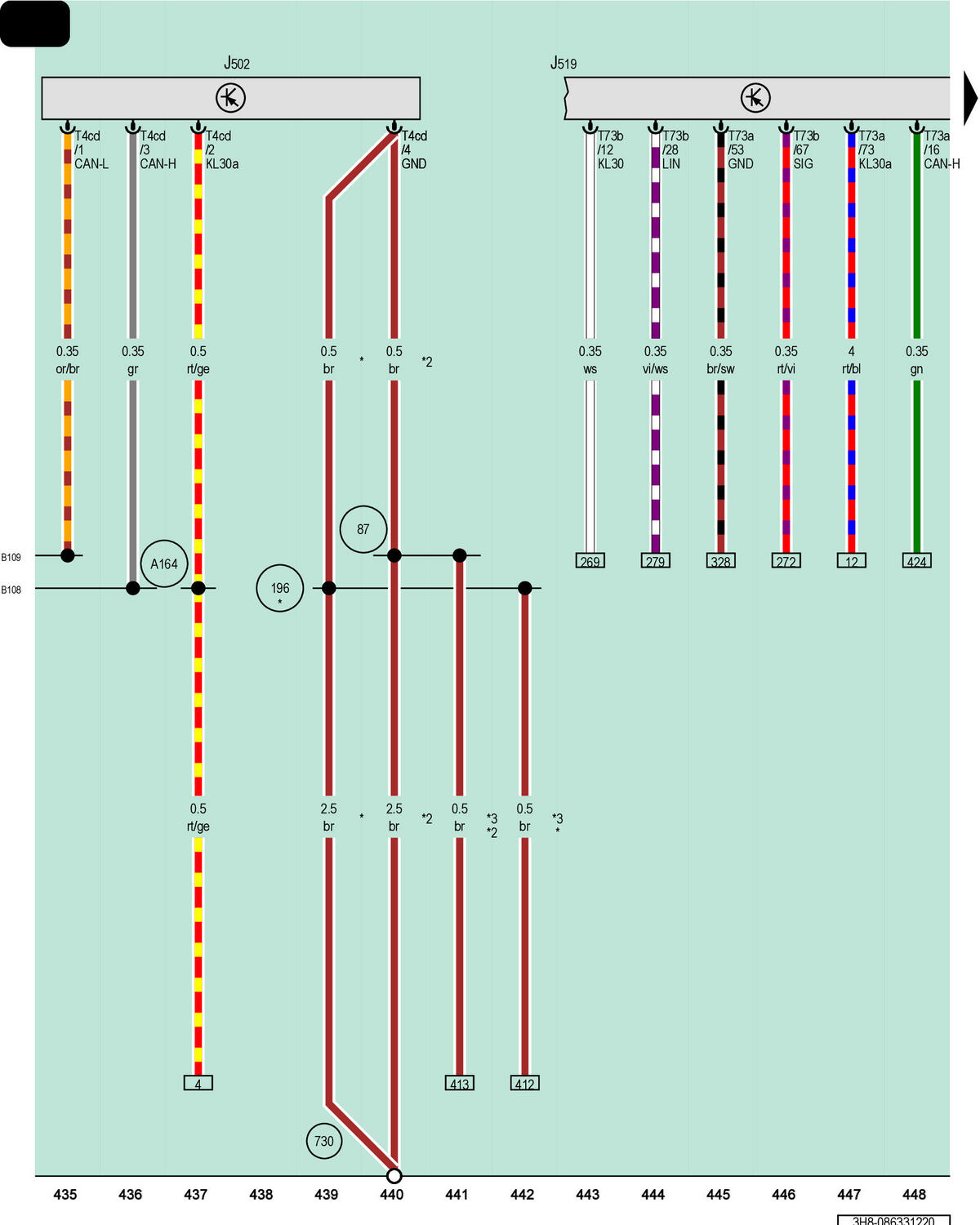

Tire Pressure Monitoring Control Module, Vehicle Electrical System Control Module
J502
Tire Pressure Monitoring Control Module
J519
Vehicle Electrical System Control Module
T4cd
4-Pin Connector, Gray
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
87
Ground Connection 2 (in Rear Wiring Harness)
196
Ground Connection 3 (in Rear Wiring Harness)
730
Ground Connection 1 on Right Rear Wheel Housing
A164
Positive Connection 2 (30a) (in Instrument Panel Wiring Harness)
B108
CAN Bus Extended High Connection 1 (in Main Wiring Harness)
B109
CAN Bus Extended Low Connection 1 (in Main Wiring Harness)
*
Sportback
*2
Sedan
*3
For Vehicles with Sensor-Controlled Power Rear Lid Opening
