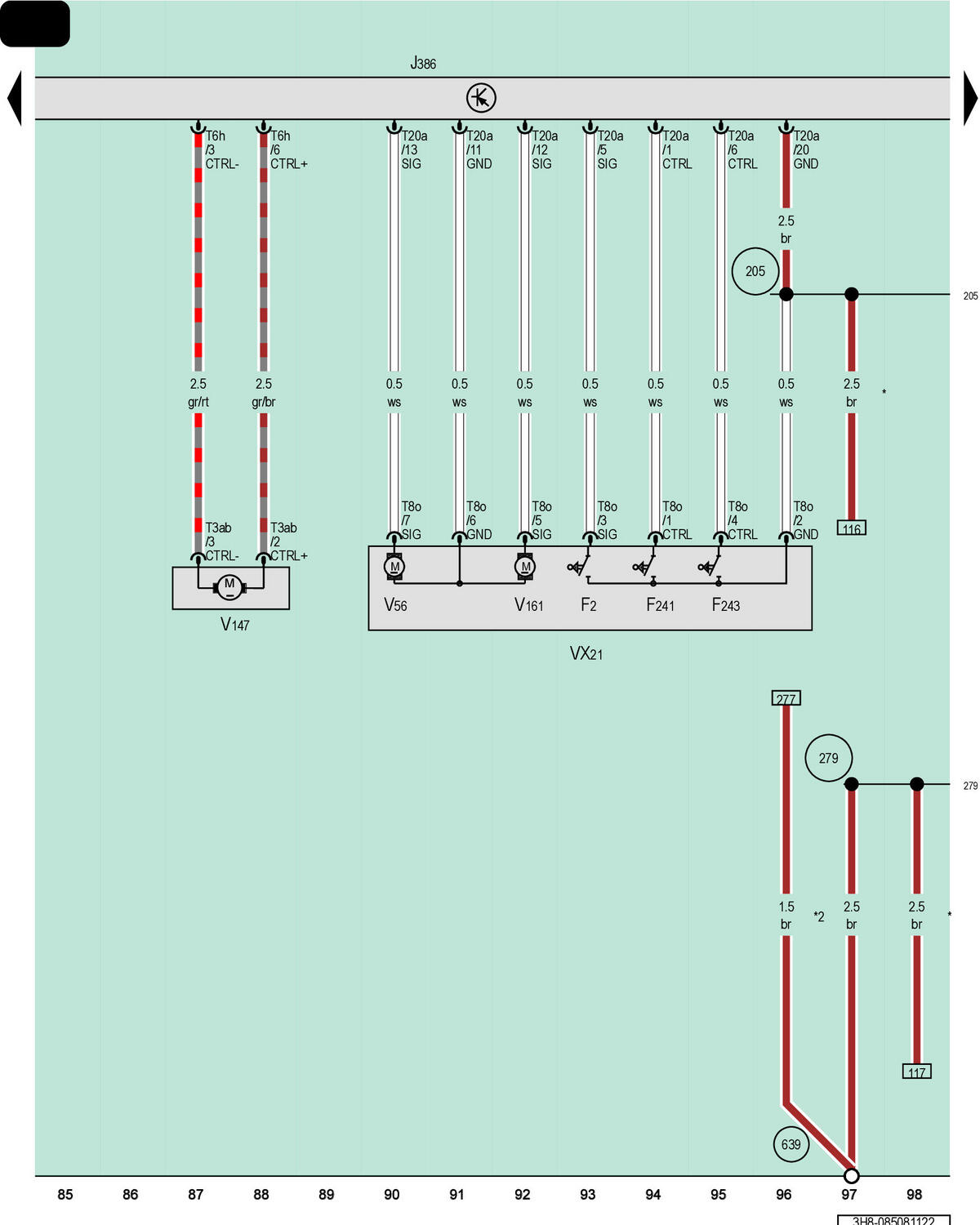

Driver Door Control Module, Driver Door Lock Unit, Driver Window Regulator Motor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

F2

Driver Door Contact Switch

F241

Driver Lock Cylinder Contact Switch

F243

Driver Door Central Locking -Safe- Function Actuator

J386

Driver Door Control Module

T3ab

3-Pin Connector, Blue

T6h

6-Pin Connector, Black

T8o

8-Pin Connector, Black

T20a

20-Pin Connector, Black

VX21

Driver Door Lock Unit

V56

Driver Door Central Locking System Motor

V147

Driver Window Regulator Motor

V161

Driver Door Central Locking -Safe- Motor

205

Ground Connection (in Driver Door Wiring Harness)

279

Ground Connection 5 (in Interior Wiring Harness)

639

Ground Connection on Left A-Pillar

*

For Vehicles with Peripheral Camera

*2

Sedan
