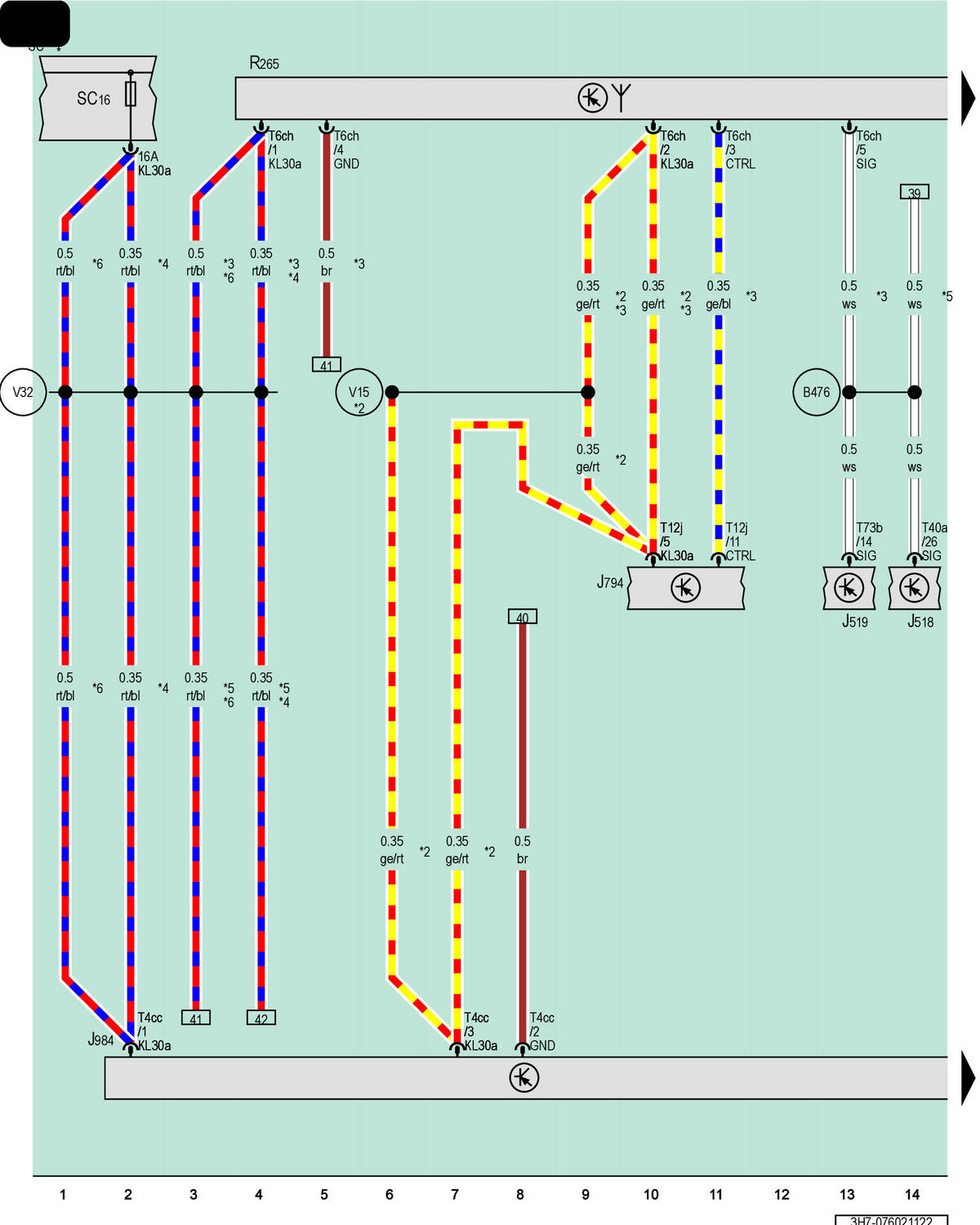

Access/Start Authorization Control Module, Vehicle Electrical System Control Module, Information Electronics Control Module 1, Mobile Communication 2-Way Signal Amplifier, Storage Compartment With Cell Phone Interface, Fuse Panel C
J518
Access/Start Authorization Control Module
J519
Vehicle Electrical System Control Module
J794
Information Electronics Control Module 1
J984
Mobile Communication 2-Way Signal Amplifier
R265
Storage Compartment with Cell Phone Interface
SC
Fuse Panel C
SC16
Fuse 16 (On Fuse Panel C)
T4cc
4-Pin Connector, Black
T6ch
6-Pin Connector, Black
T12j
12-Pin Connector, Gray
T40a
40-Pin Connector, Black
T73b
73-Pin Connector, Black
B476
Connection 12 (in Main Wiring Harness)
V15
Connection (in Telephone Wiring Harness)
V32
Positive Connection (30 (in Telephone Wiring Harness)
*
Refer to Applicable Wiring Diagram for Fuse Positions
*2
Depending on Equipment
*3
For Vehicles Without Near Field Communication
*4
Through July 2022
*5
For Vehicles with Near Field Communication
*6
From July 2022
