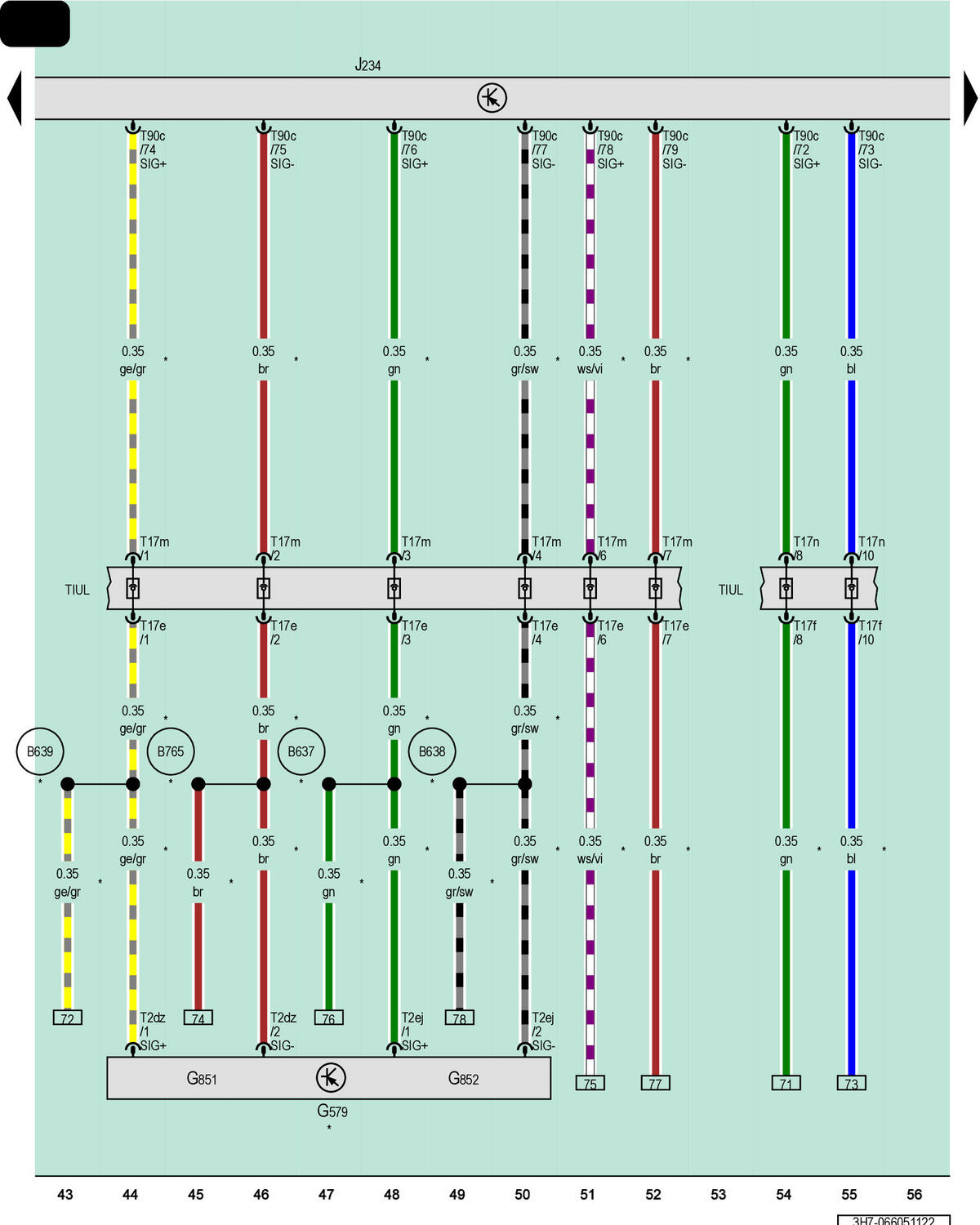

Pressure Hose Sensor For Front Pedestrian Protection, Driver Side Pedestrian Protection Crash Sensor 2, Front Passenger Side Pedestrian Protection Crash Sensor 2, Airbag Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G579

Pressure Hose Sensor for Front Pedestrian Protection

G851

Driver Side Pedestrian Protection Crash Sensor 2

G852

Front Passenger Side Pedestrian Protection Crash Sensor 2

J234

Airbag Control Module

T2dz

2-Pin Connector, Yellow

T2ej

2-Pin Connector, Yellow

T17e

17-Pin Connector, Black

T17f

17-Pin Connector, Brown

T17m

17-Pin Connector, Black

T17n

17-Pin Connector, Brown

T90c

90-Pin Connector, Yellow

TIUL

Coupling Point in Interior, Bottom Left

B637

Airbag Connection 1 (in Main Wiring Harness)

B638

Airbag Connection 2 (in Main Wiring Harness)

B639

Airbag Connection 3 (in Main Wiring Harness)

B765

Airbag Connection 4 (in Main Wiring Harness)

*

Depending on Equipment
